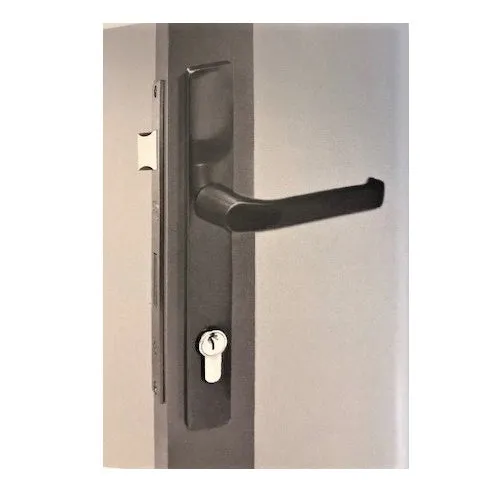

DS1400/0 Hunter hinged door lock and furniture

Dimensions: 195mm between hole fixing centers; 219mm long x 28mm wide

Kit: include Hunter furniture (black) inside and outside handle, DS1295 lockset and cylinder

Material: Lever and escutcheon manufactured from case aluminium

Suitable for hinged doors in single french or bifold doors

Doric's DS1400 Series range is cast from aluminium and

Finish: Black held in stock (other powdercoat colours available on application, please contact us so we can check availability and pricing)

Un-sprung handle is easy to assemble

DS1295 lockset/30 - mortice latch and projections bolt, 30mm backset

Dimensions: 198mm between hole fixing centers, 210mm long x 24mm wide

NOTES:

Once the escutcheon plates are fitted, the Hunter lever is attached to the spindle and secured by an M5 grub screw.

The DS1400 has an 85mm pitch between lever spindle and the keyed cylinder barrel and is suitable for Doric Swing Bolt Euro Cylinder Mortice locks.
