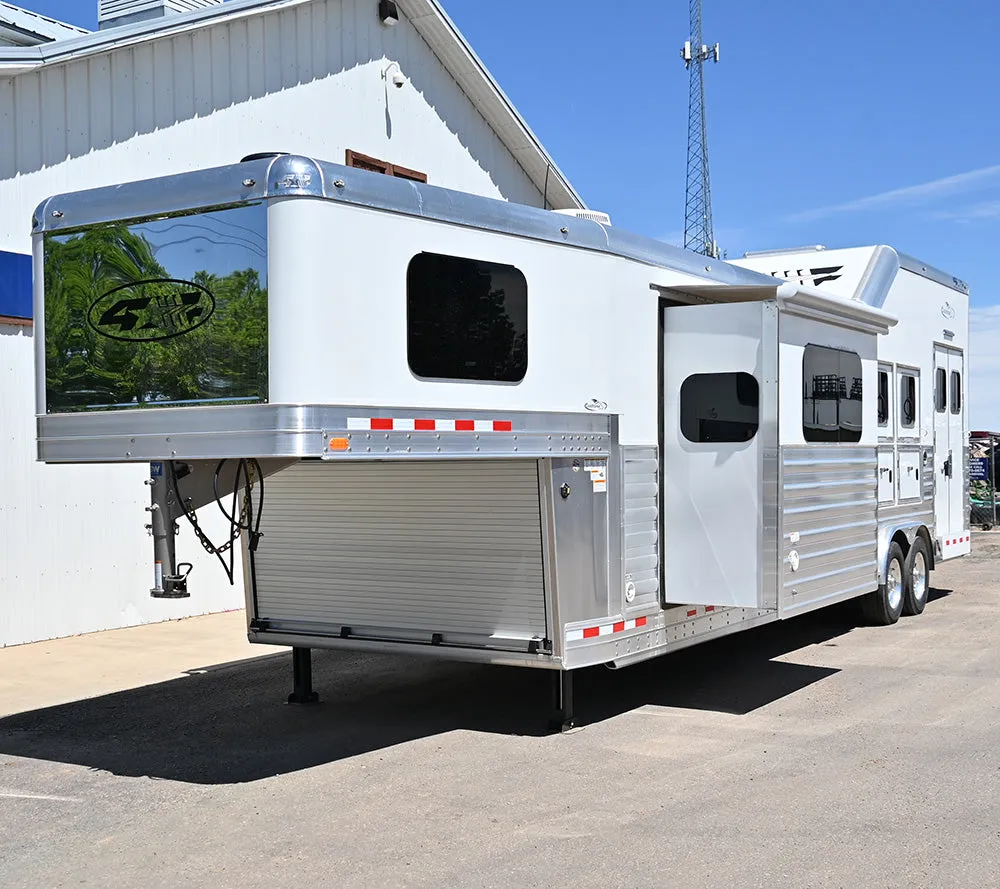

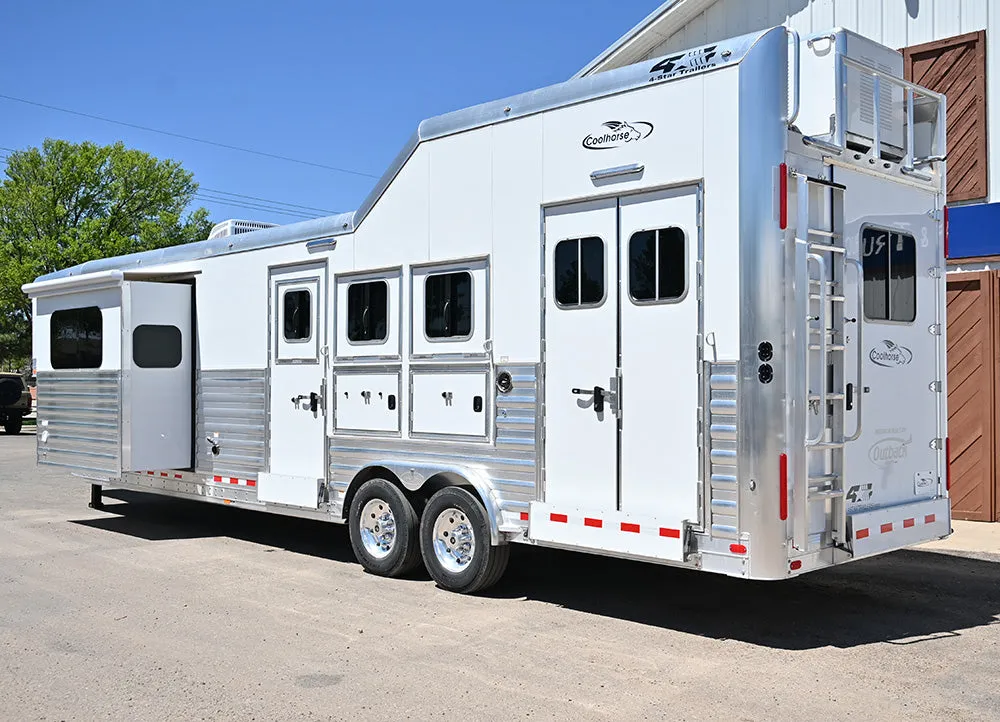

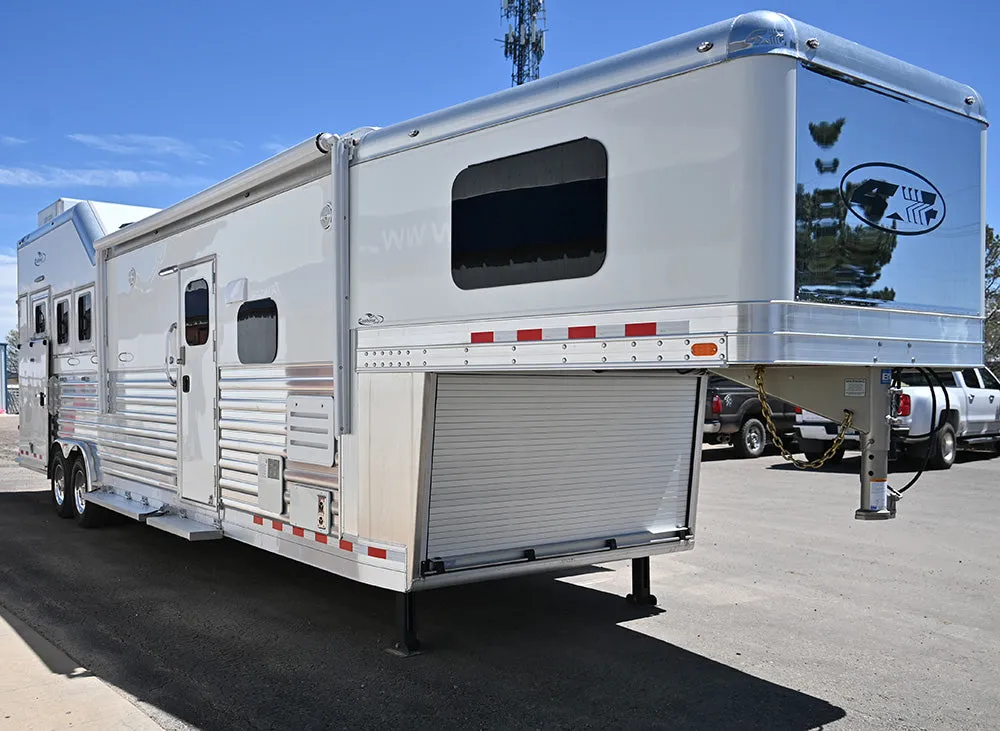

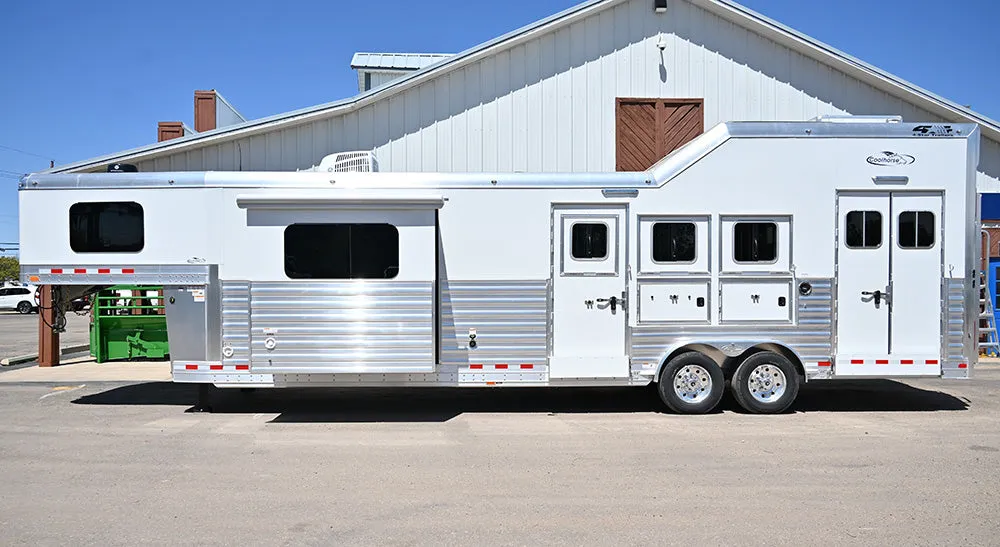

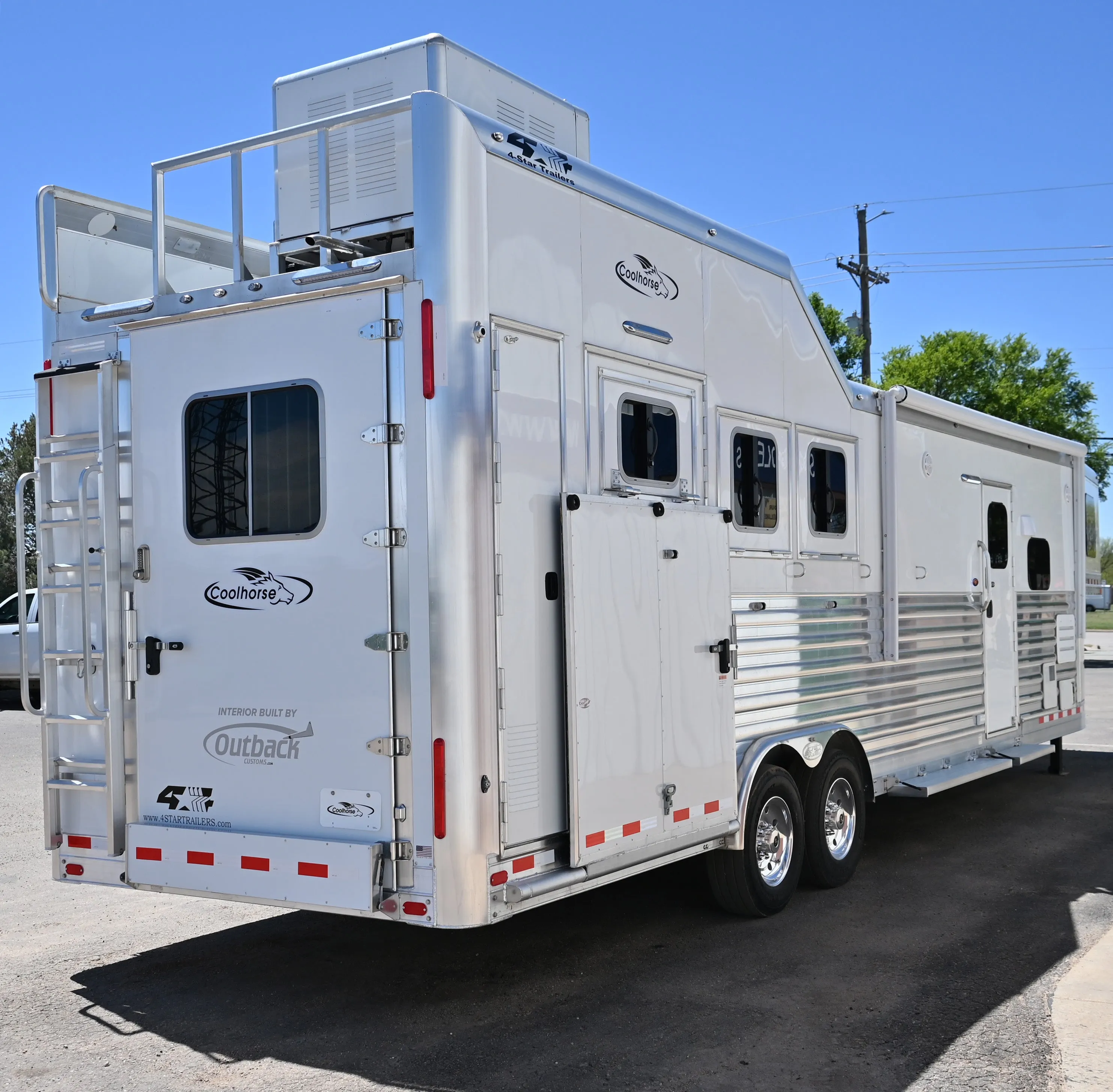

First Glance
2024 4-STAR
3 Horse Side Load
13’6” short wall LQ by Outback Conversions
Side Load

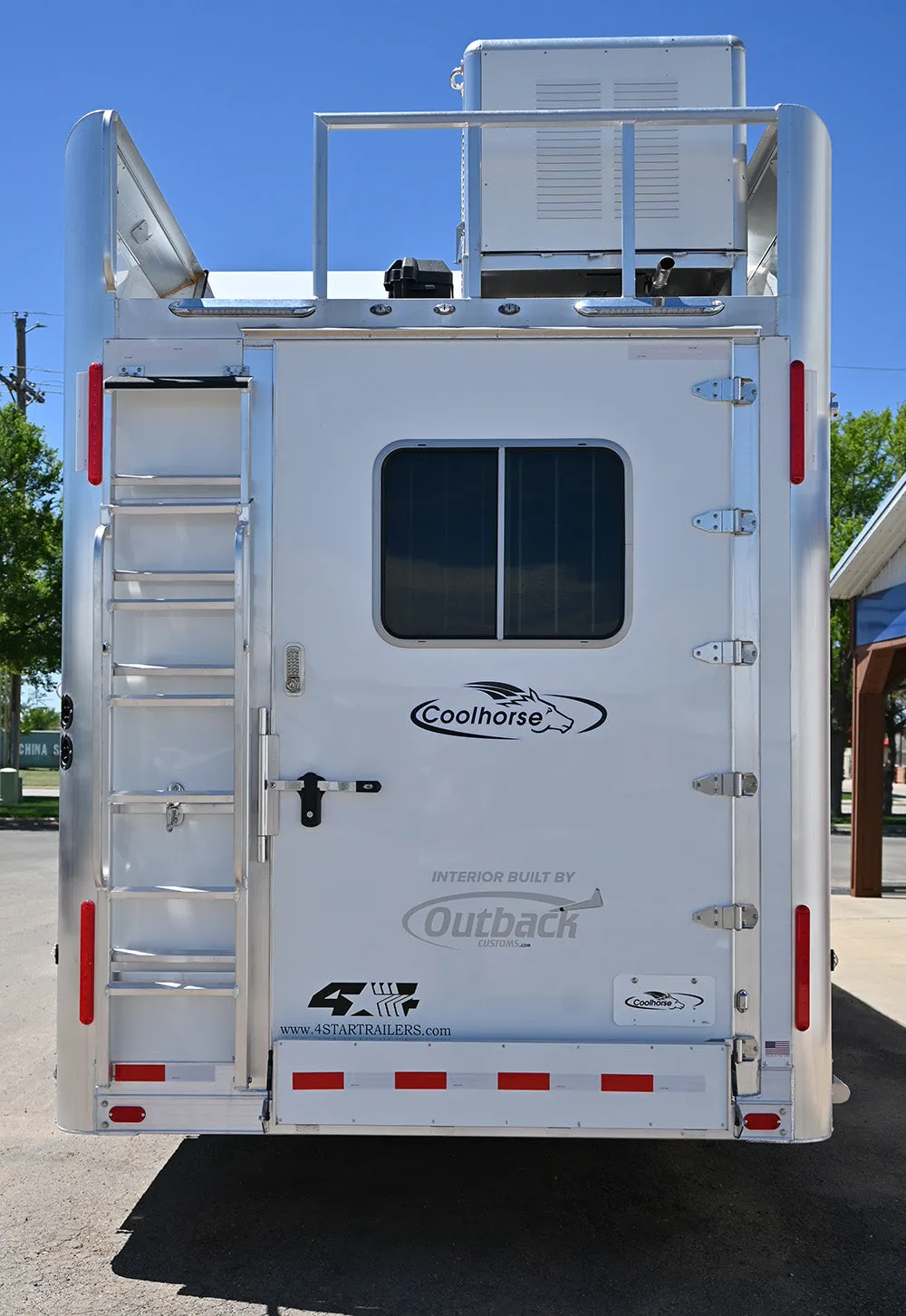

Full Rear Tack
4000 watt Onan generator on roof
8’ wide x 8’ tall x 31’ long deck
8’ Integrated Hay Pod
Dual Equalizer Jack
Enclosed Nose
Financing (WAC) and delivery available
Horse Trailer Specs
2024 year model
Manufacturer: 4-STAR
3 Horse Coach model
All aluminum (floor, sides, roof, & frame). Pre painted white aluminum skin on top and aluminum slats on bottom
8’ wide x 31’ long box x 8’ tall

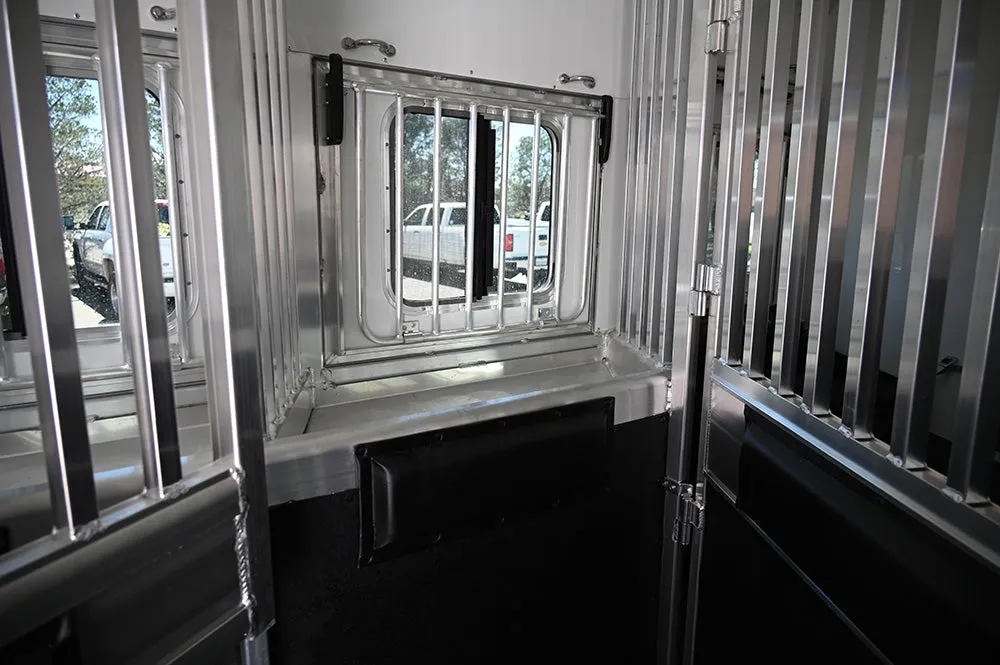

(3)Drop down windows on head wall and bars
(3)Drop Down windows on rump wall

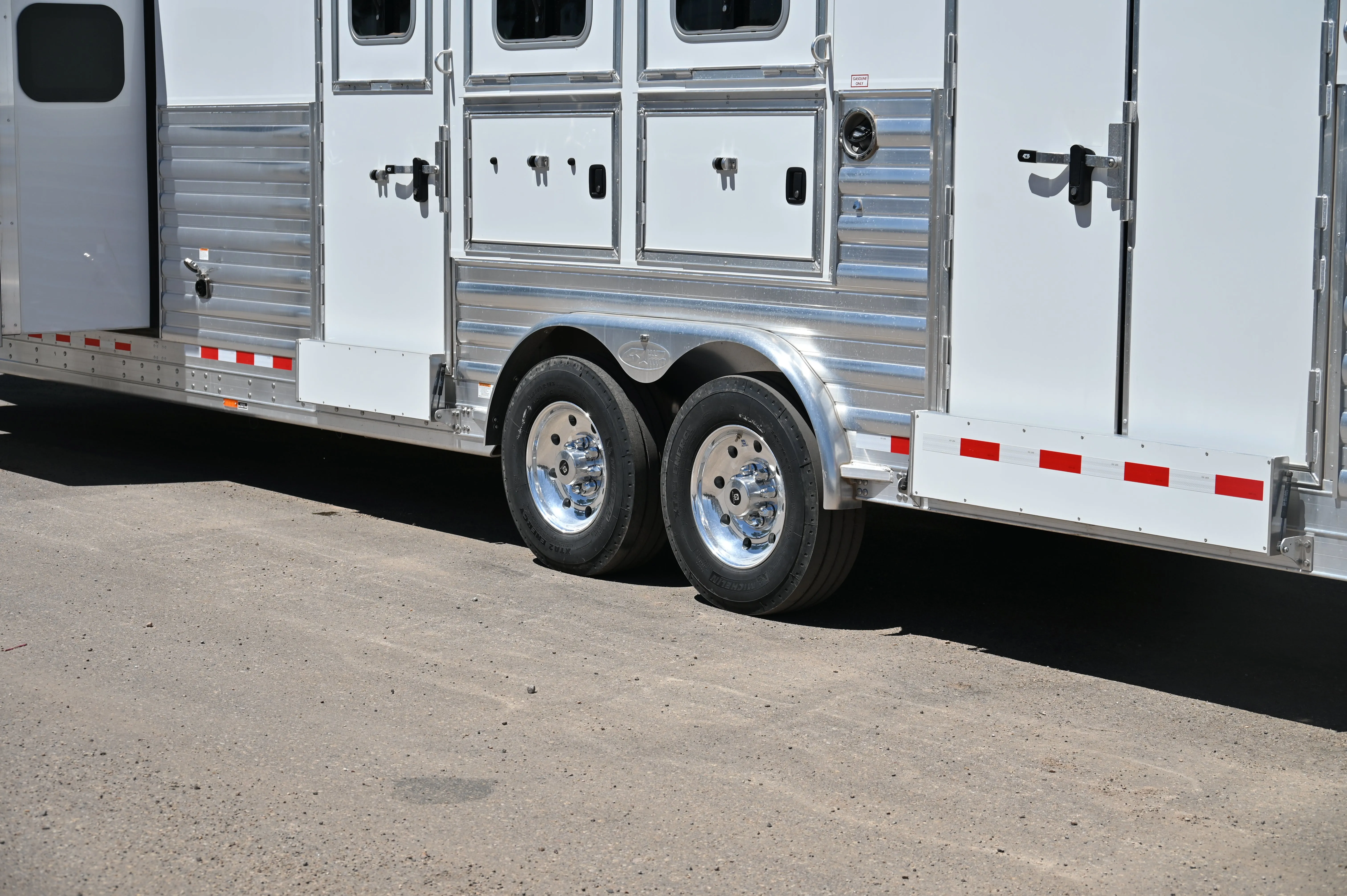

2 – 10000 lb rubber torsion axles
Electric/Hydraulic brakes on both axles
GVWR weight: 24,650lbs
Continental 245/70R17.5 18 ply tires
8 Lug 17.5” Aluminum Alcoa Wheels
Spare included
Escape door on street side

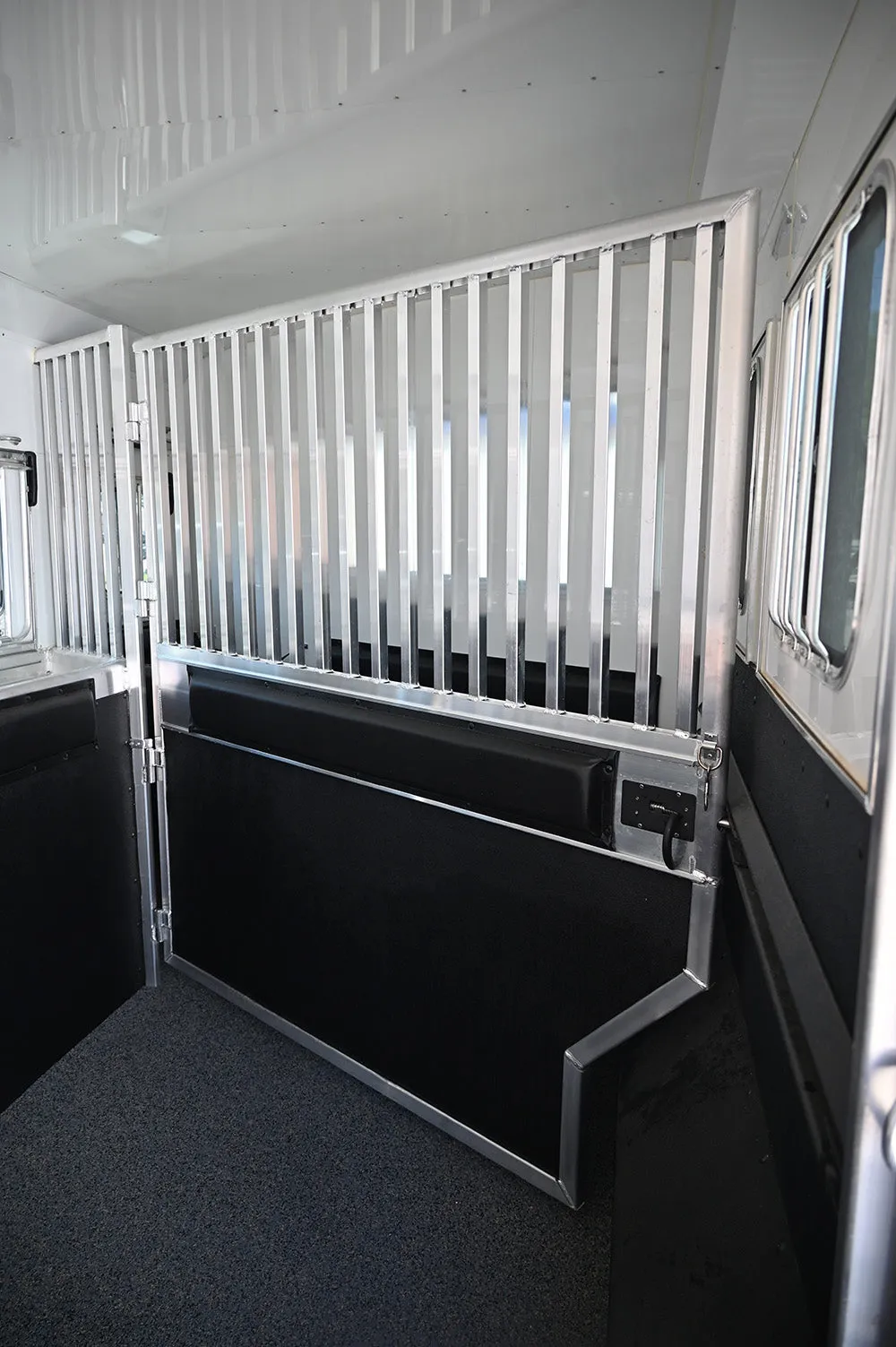

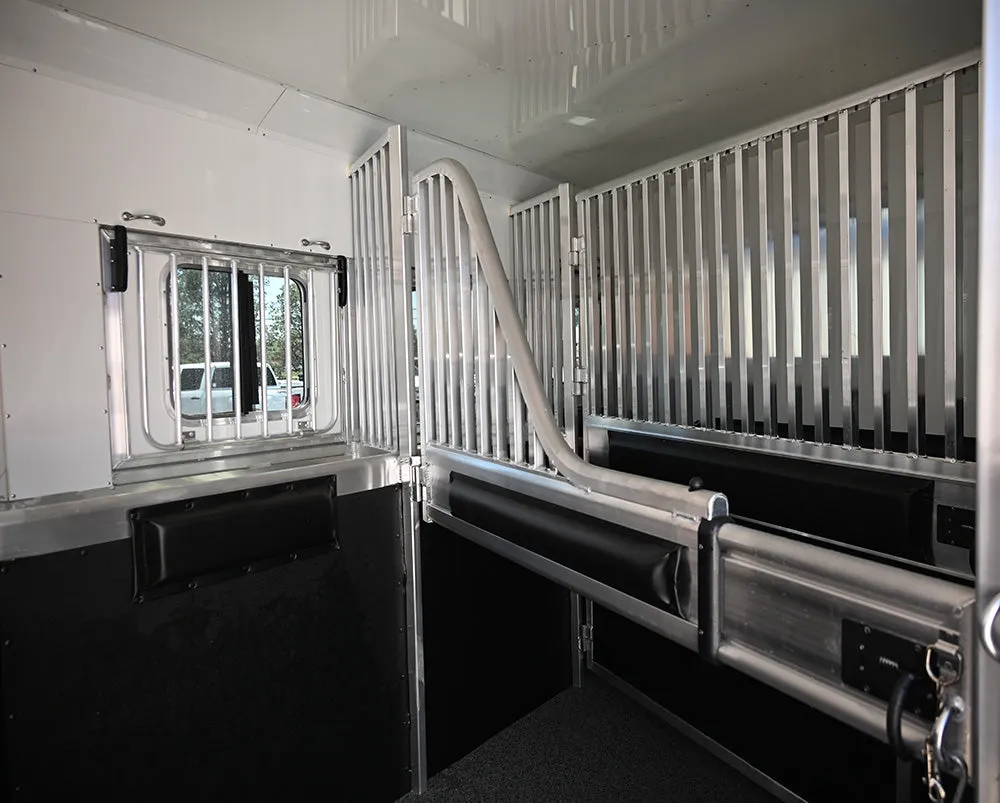

2 dividers
Stall width measurements (wall measurements) 40”-40”-48”

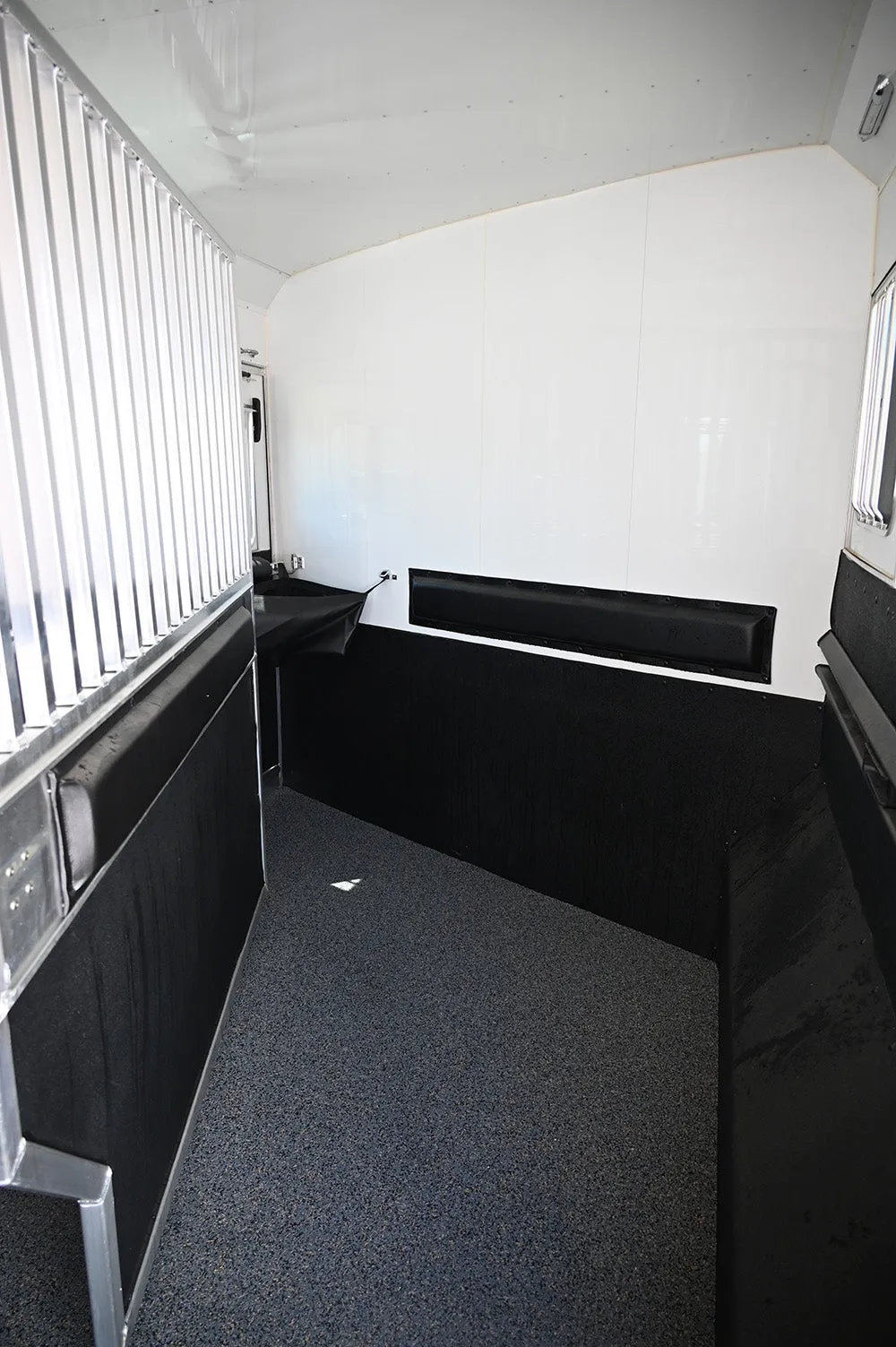

Walls rubber lined

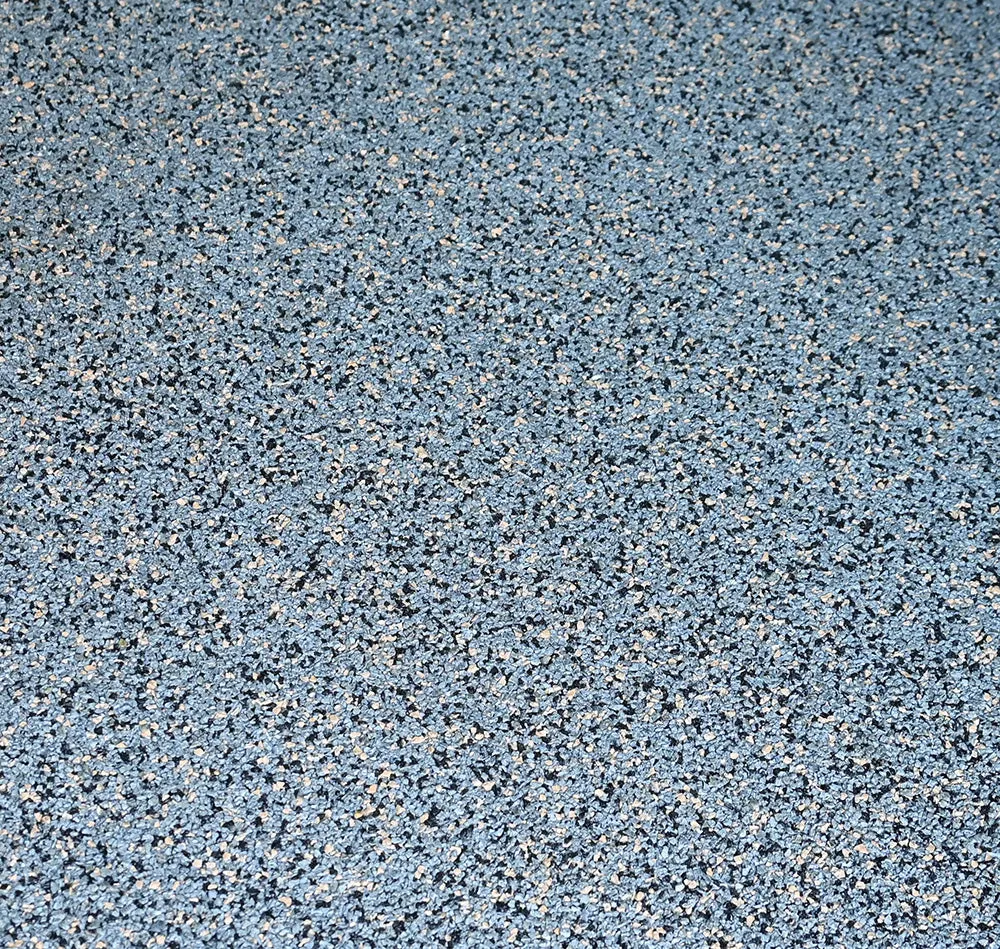

Pour in Rubber Floor
2 cargo light in horse compartment
3 LED Load Lights ( 1 on Street Side, 1 on Curbside, 1 on Rear)
Insulated Roof in horse area

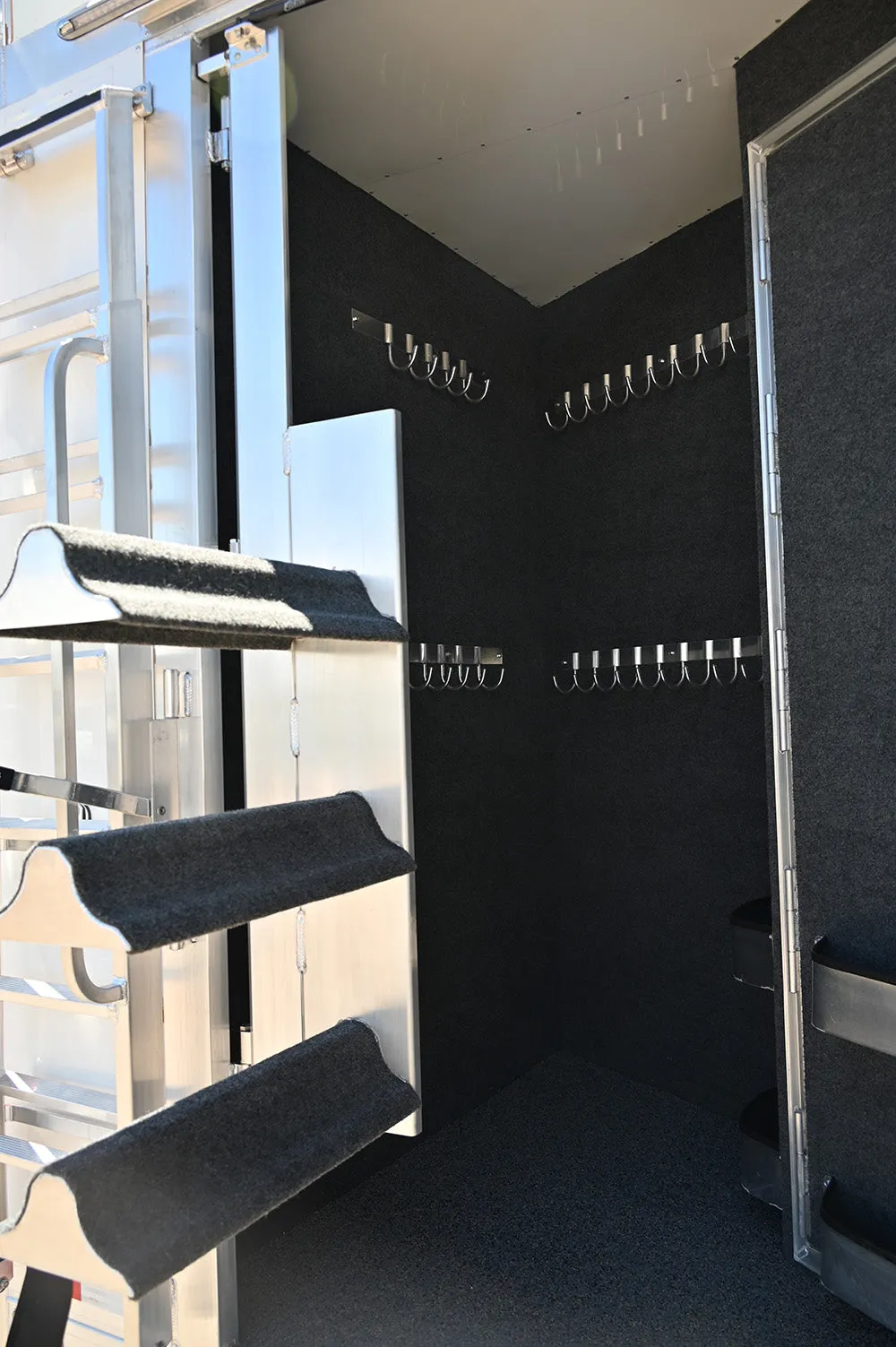

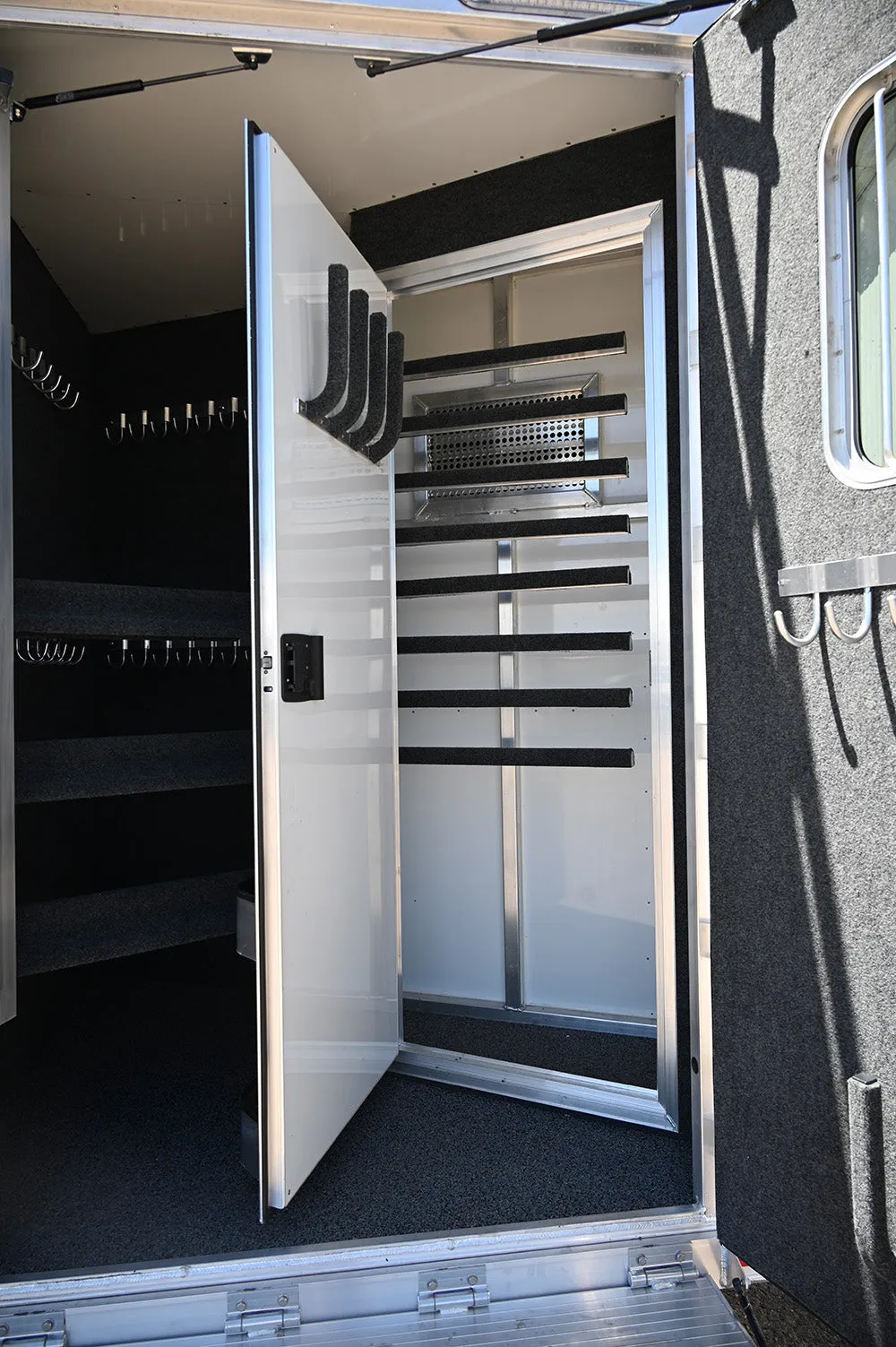

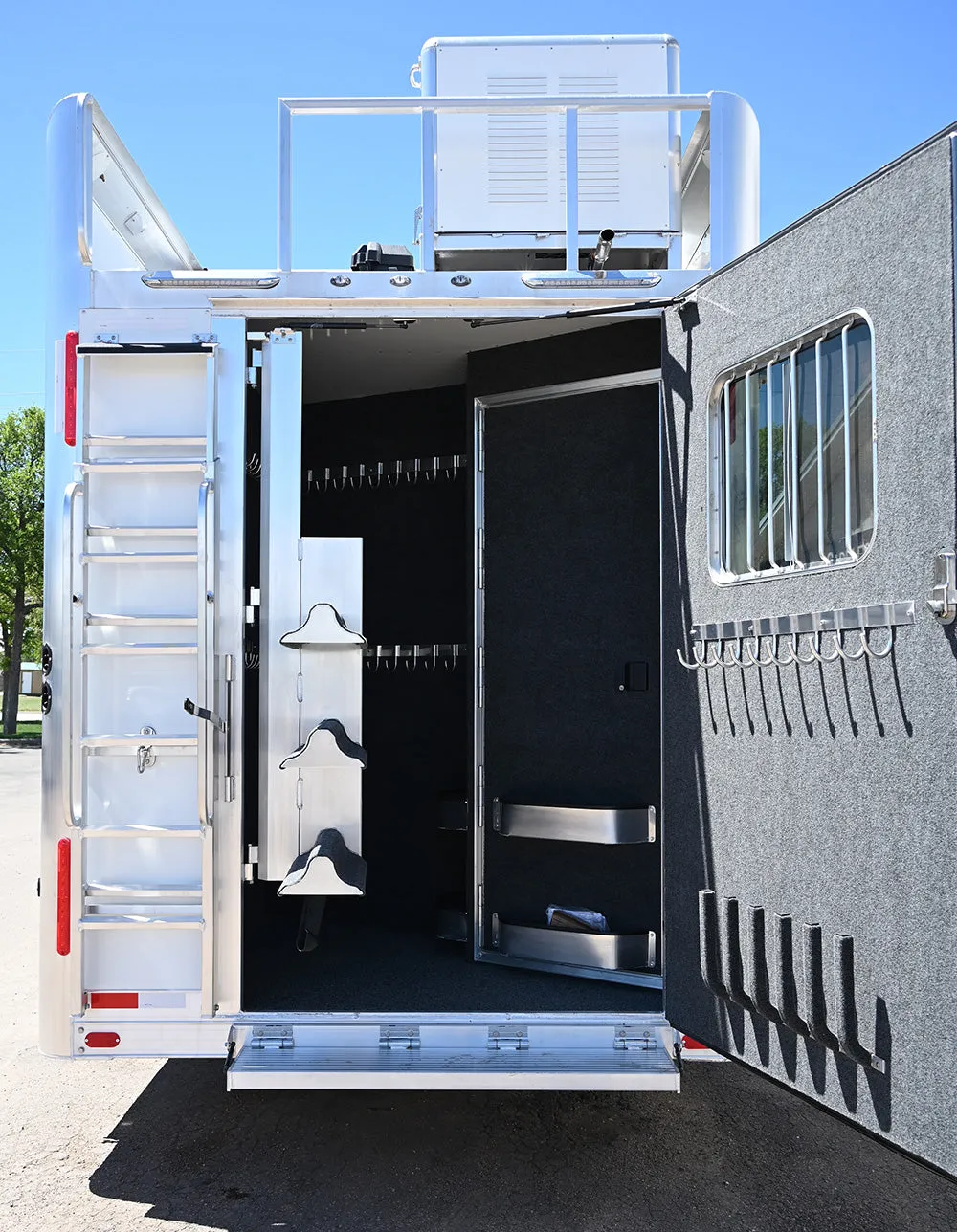

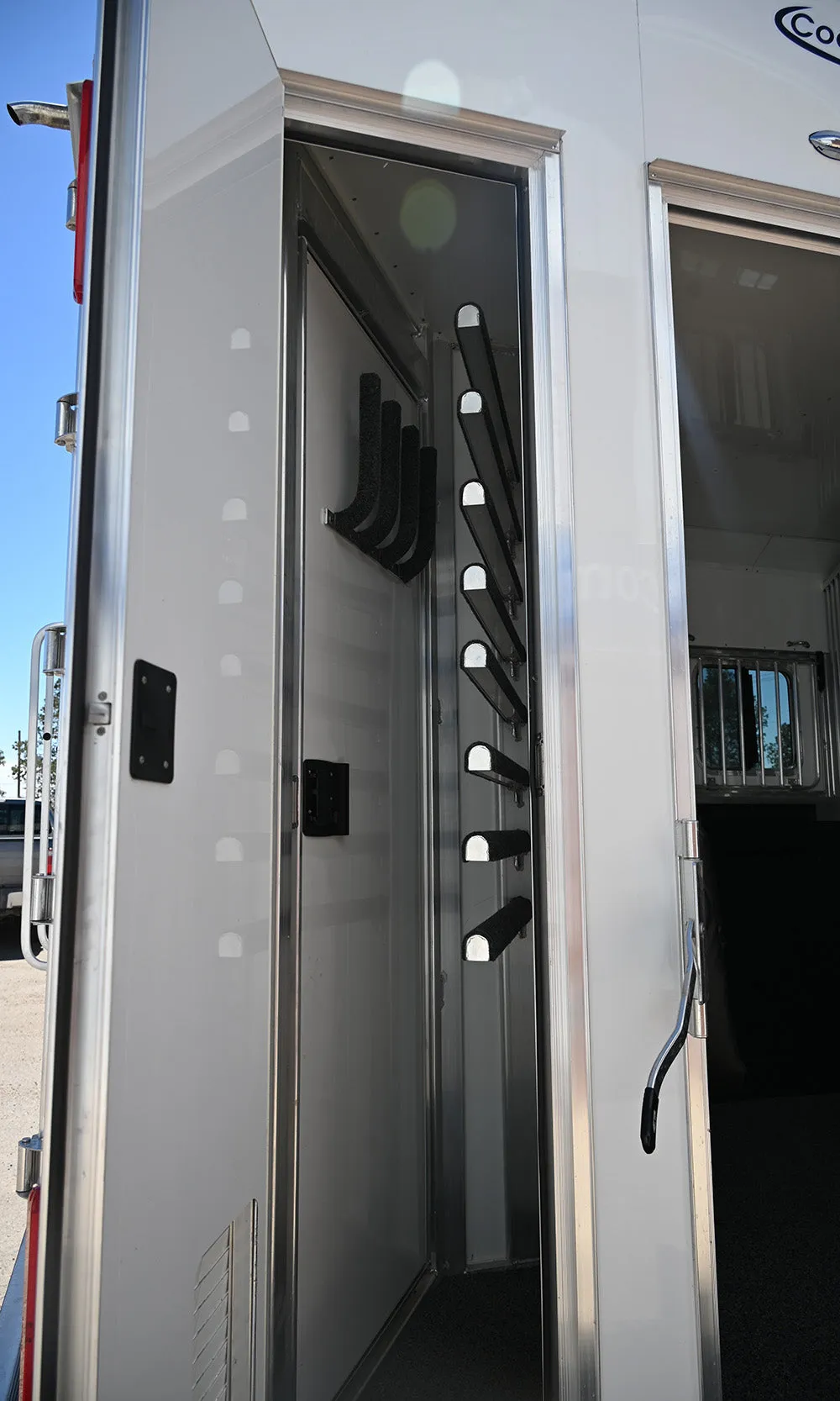

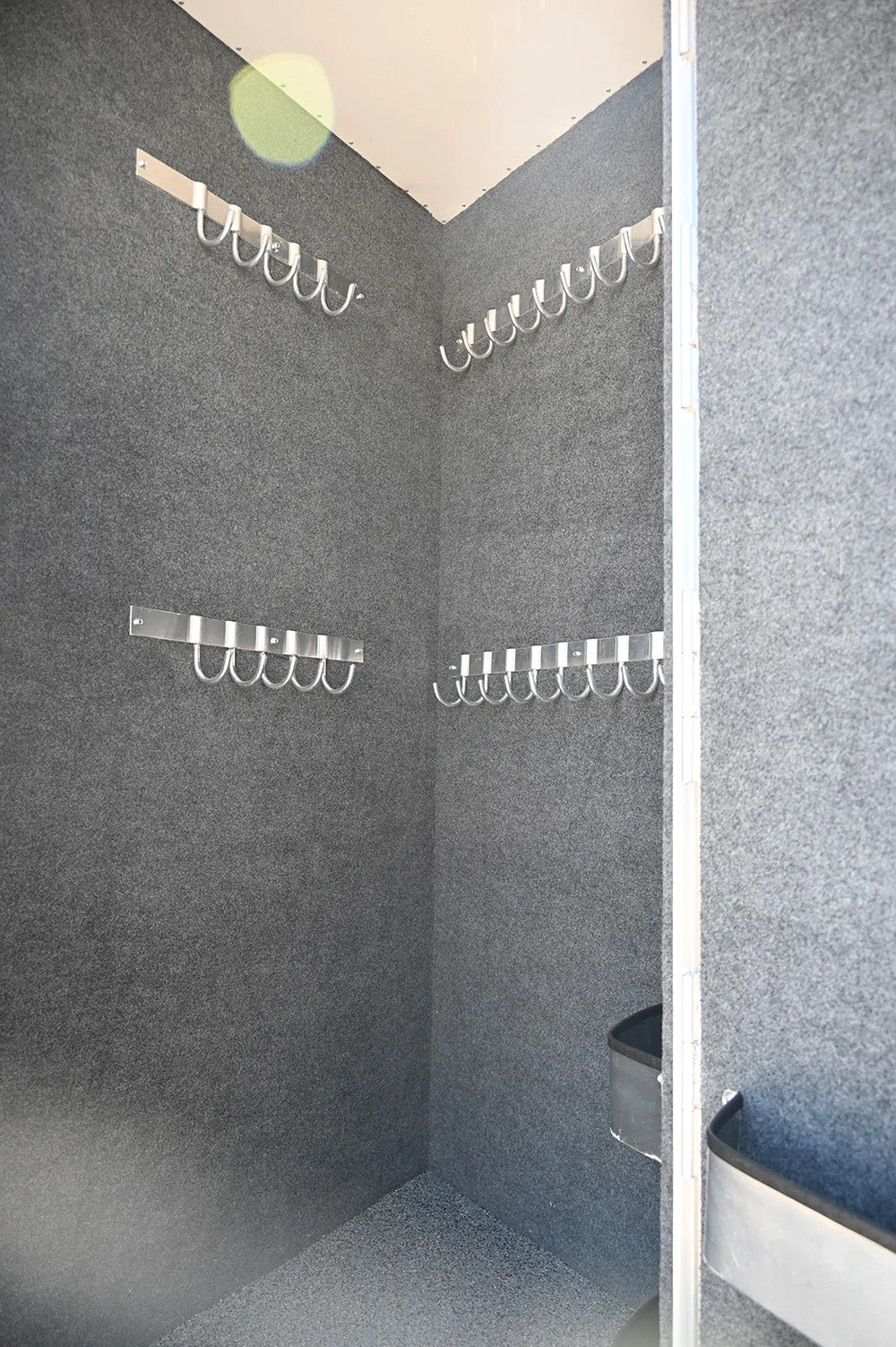

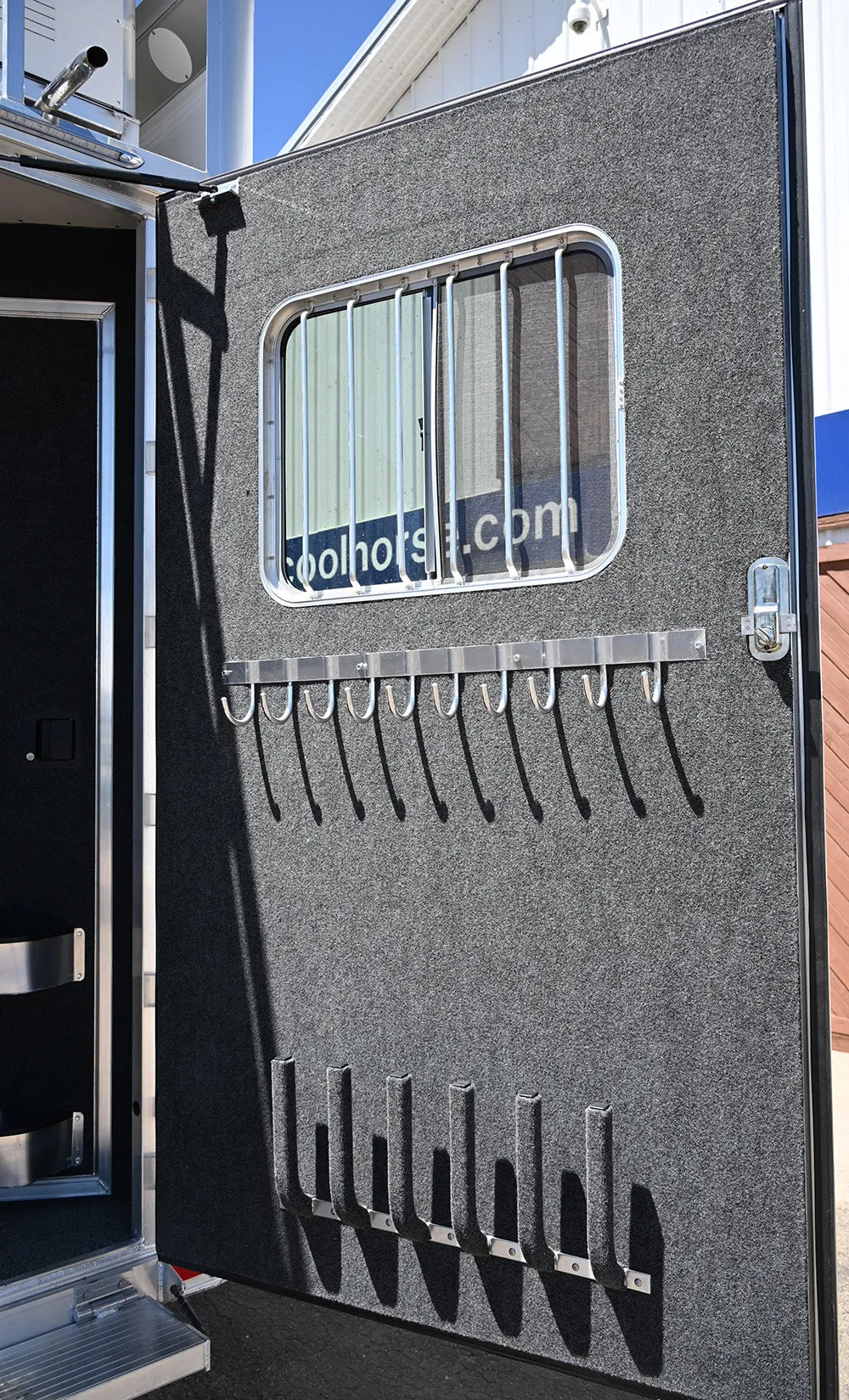

Full rear tack includes: 3 tier swing out saddle rack, 40 hooks, 8 tier blanket bars located in Blanket bar closet , 4 brush traysl,fully carpeted walls.
Fully Carpeted Broom Closet on Driver Side of Rear Tack
Dual hydraulic Equalizer Jack

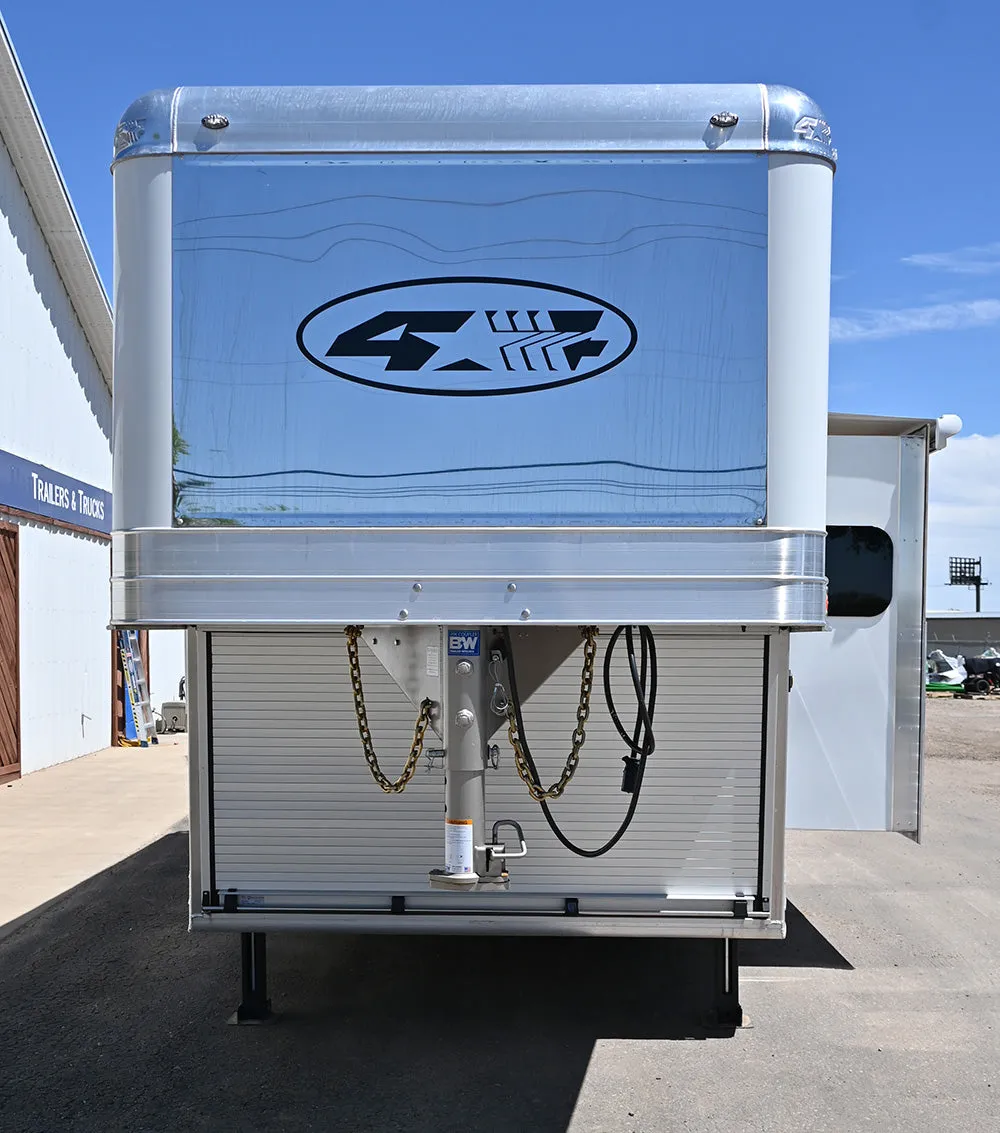

Enclosed Front Drop Wall
2- 20lb propane tanks
2-12Volt battery in double aluminum battery box under nose
7 way RV light plug, 2 5/16” Bulldog Quick Coupler, safety chains, and emergency brake system
8’ Integrated Haypod with 4000 watt Onan generator

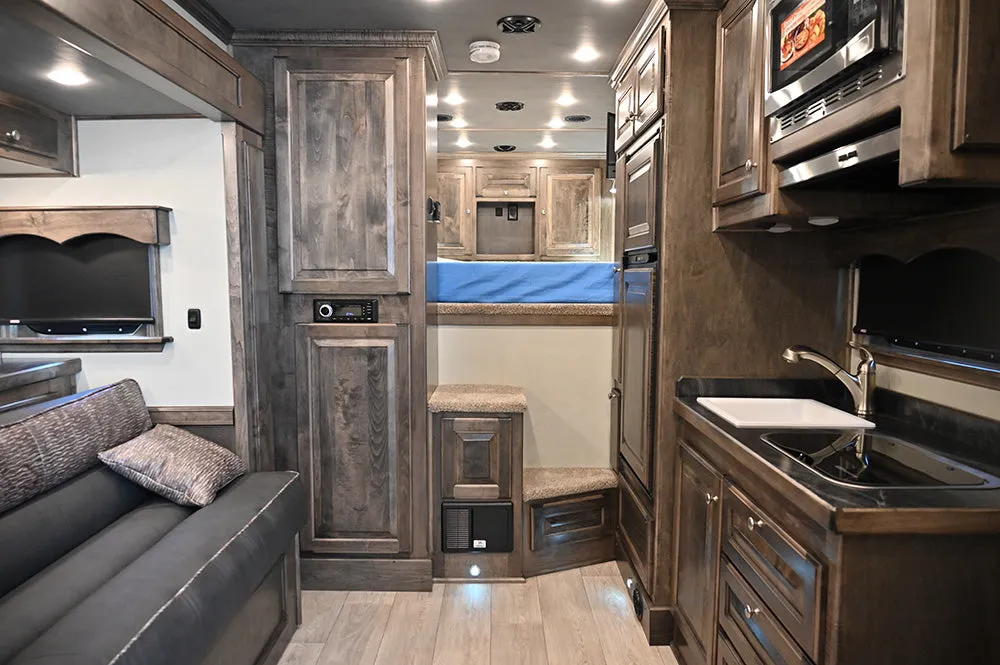

Living Quarter Specs
13’6” Short Wall
LQ by Outback Conversions
RVIA Certified
Allante (soft touch) walls and ceiling
Maple Wood Interior
Linoleum floor
Wood Valances above all Windows

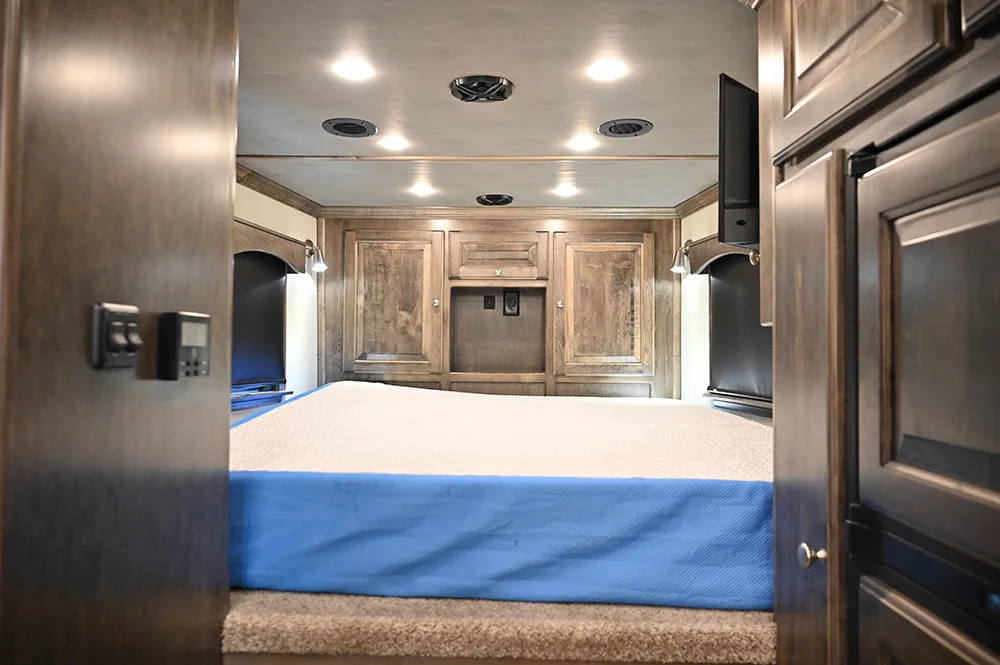

Queen size memory foam mattress in bed
Sliding Screen door at LQ Door
Wooden pocket door into bathroom

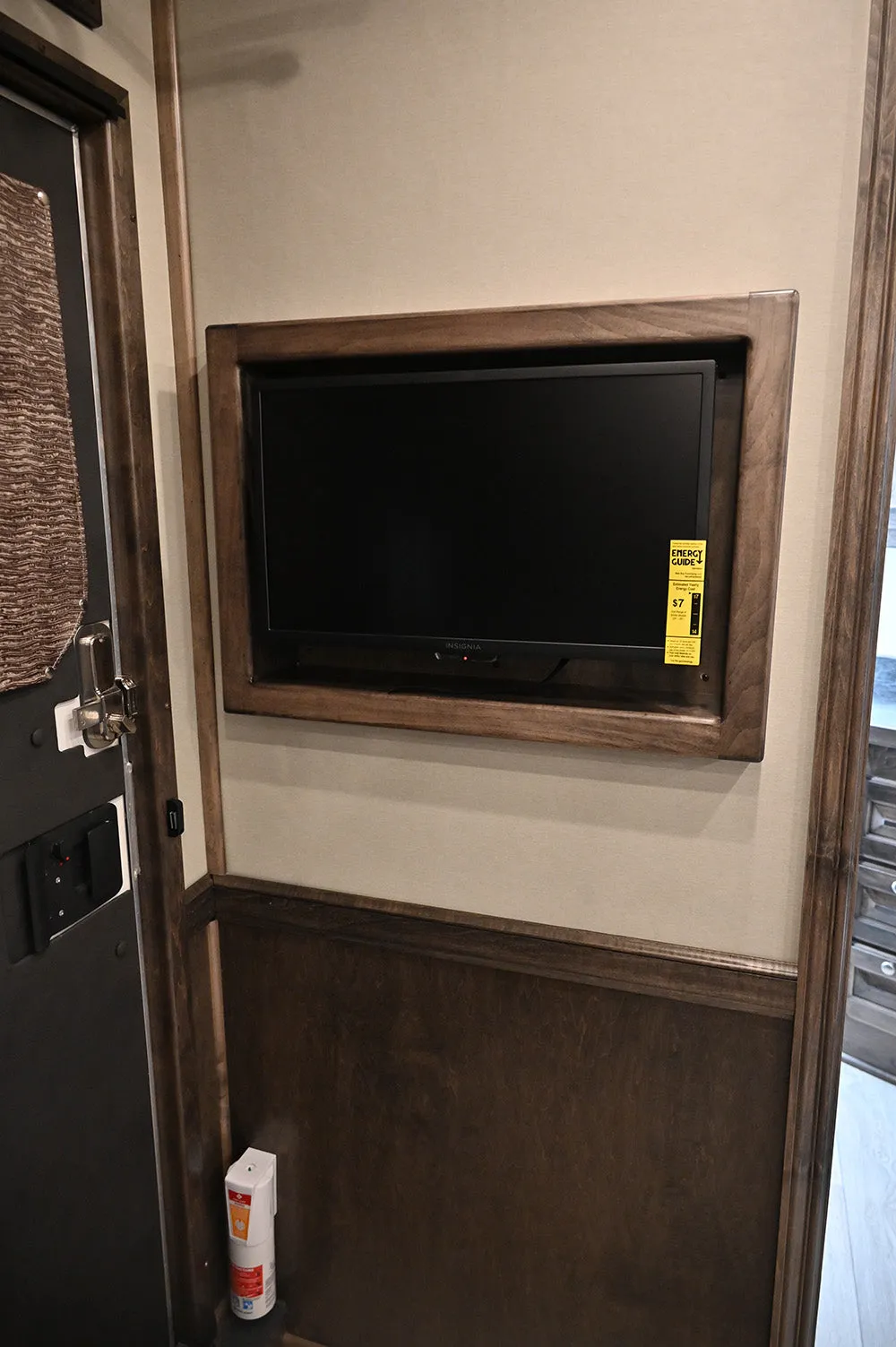

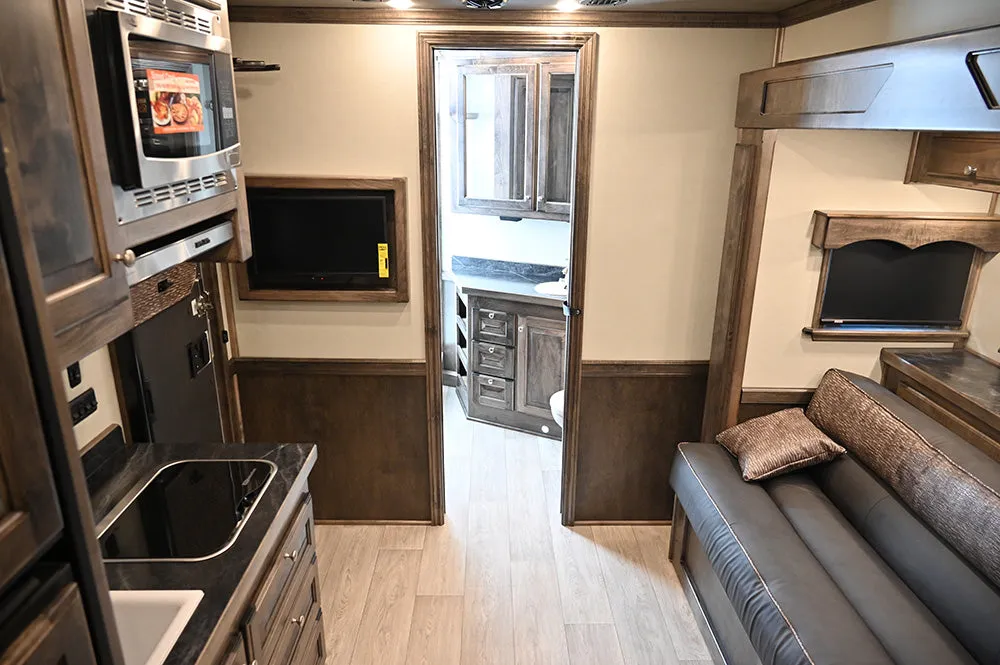

Flat screen TV in Living area

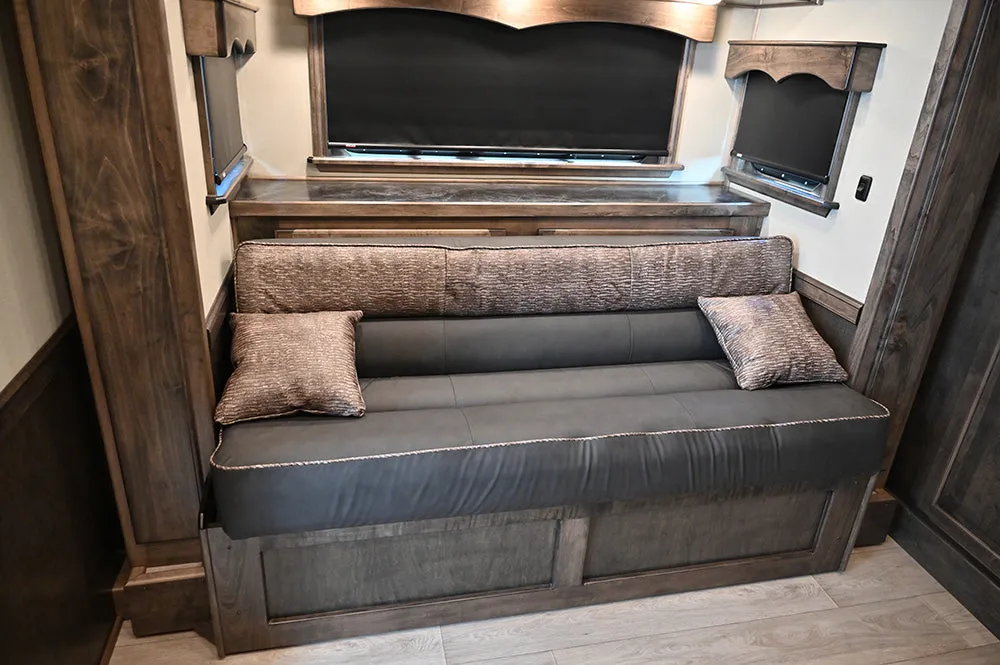

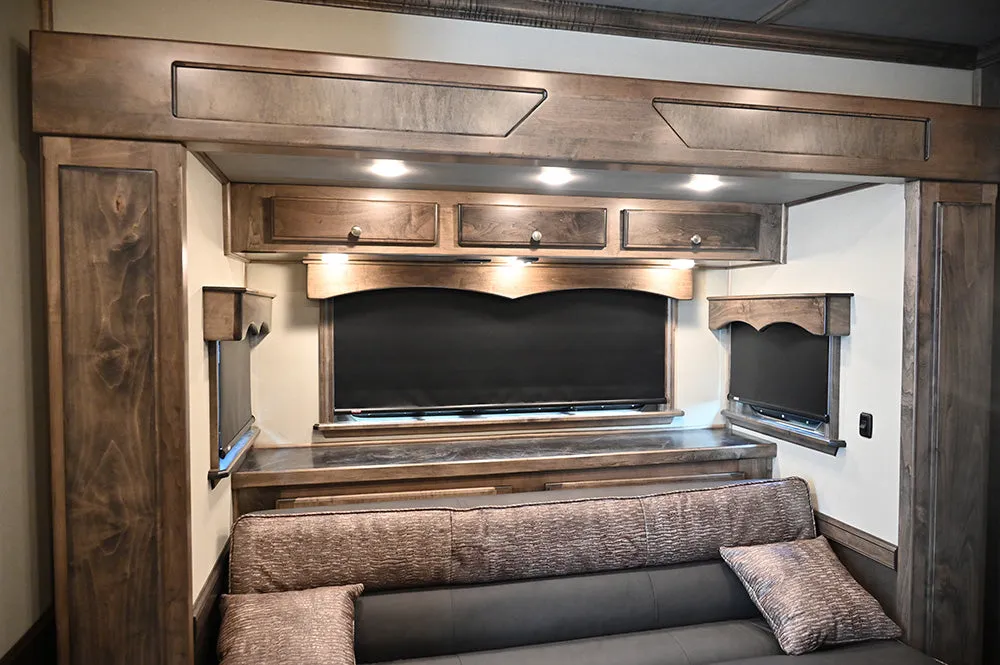

72” Sleeper Sofa in Slide Out
2 wood hat racks above LQ door
2 USB plugs and 110V outlet in nose of trailer

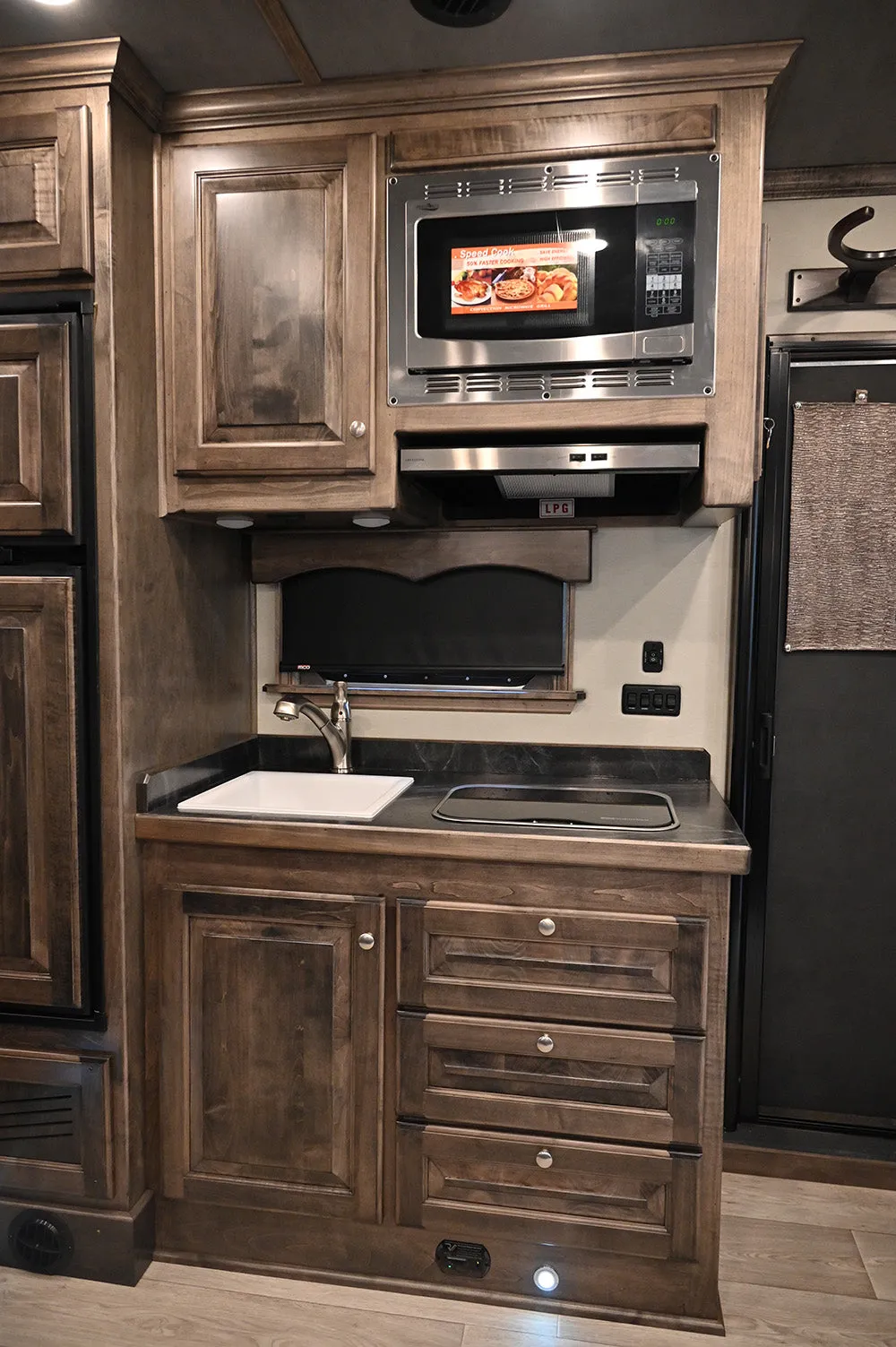

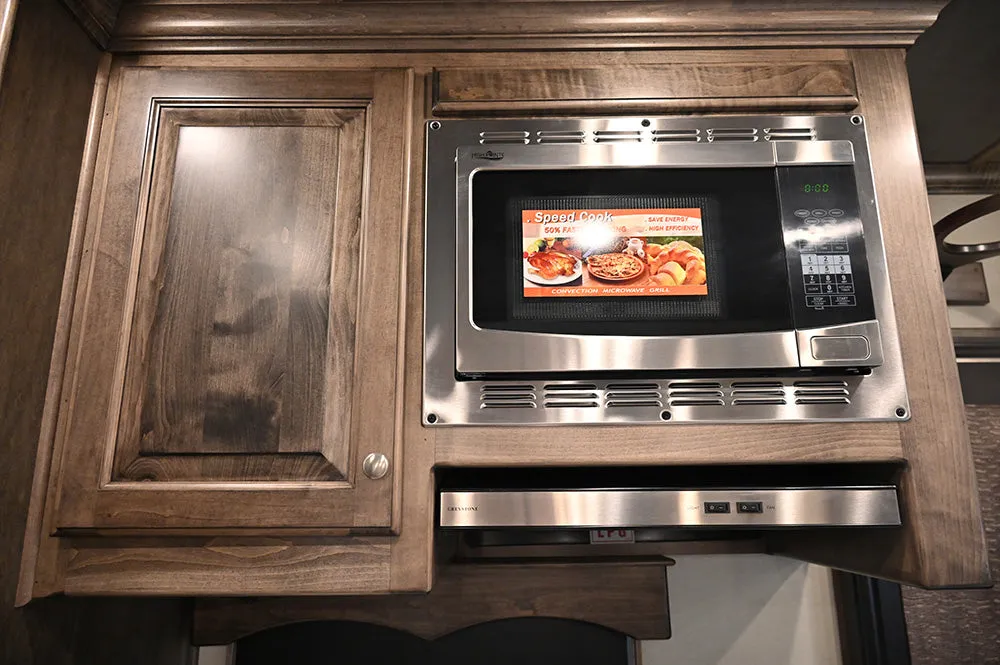

Highpoint brand Convection Microwave3
Porcelain kitchen sink

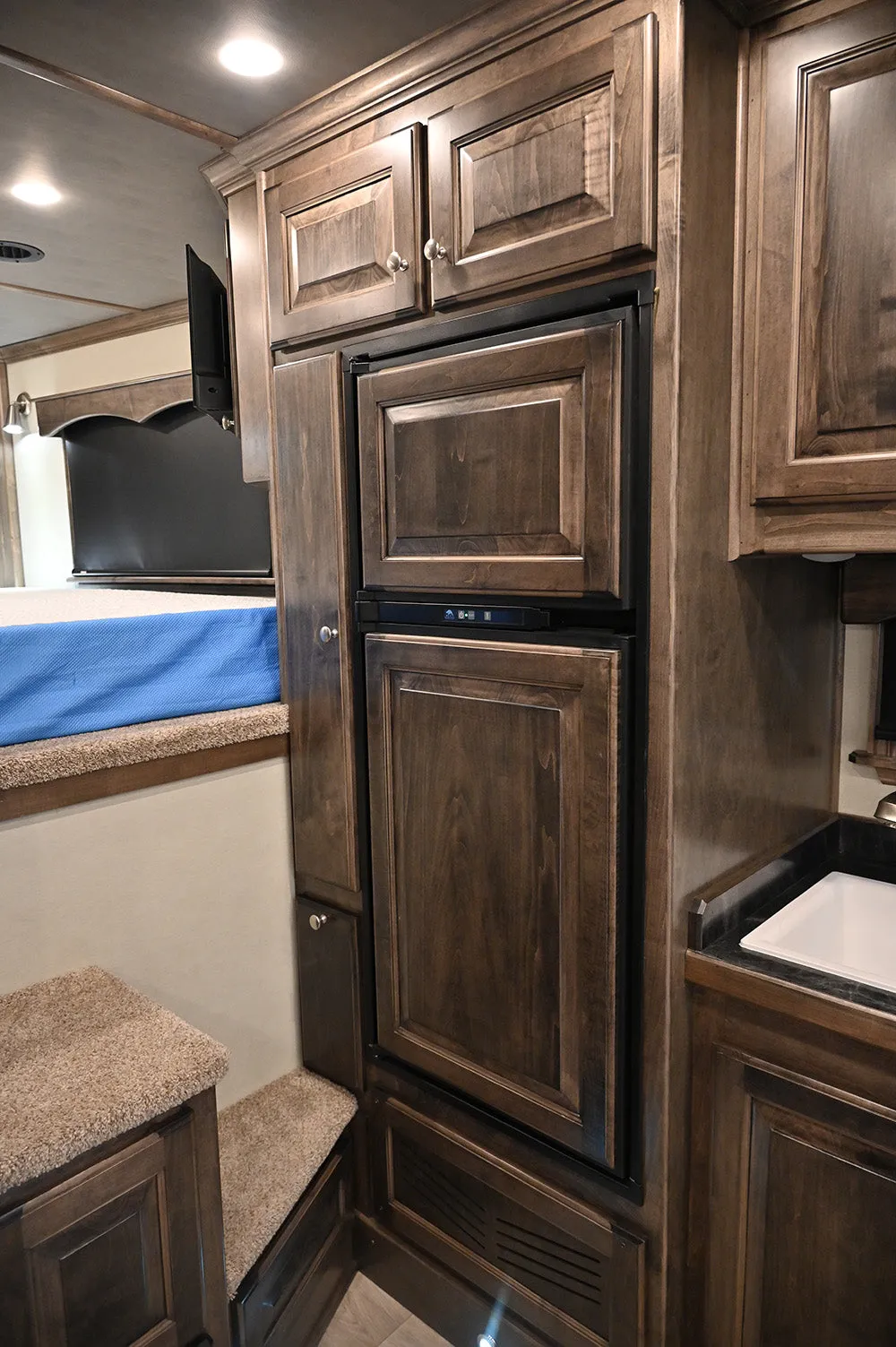

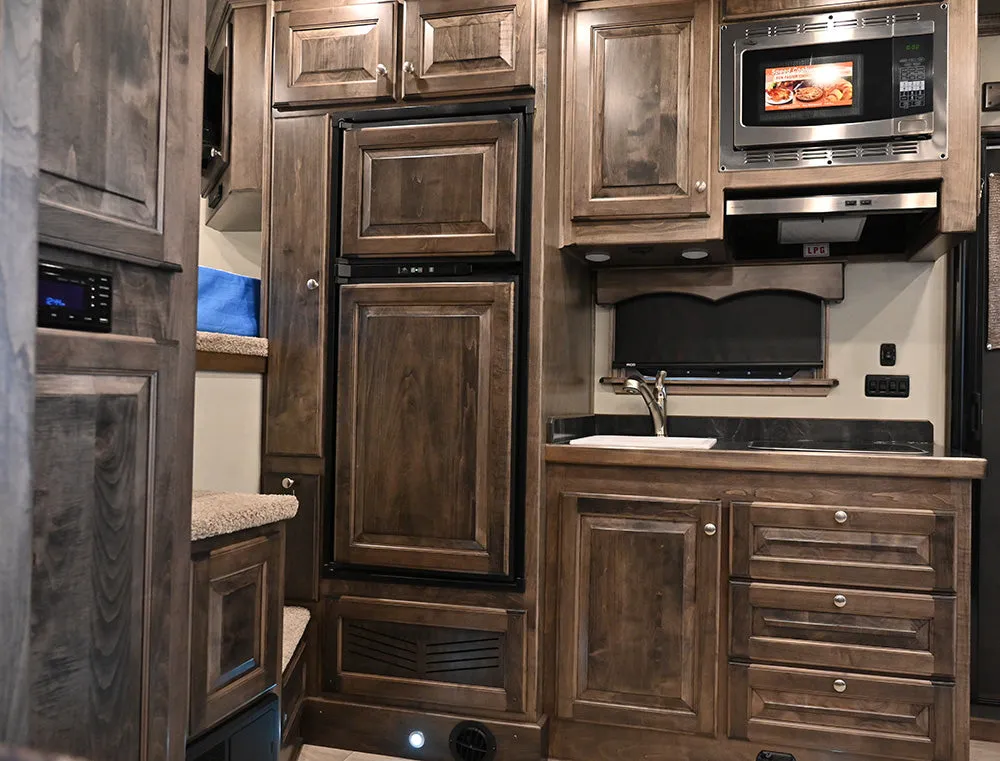

Norcold 7.0 Refrigerator and Freezer
2 windows in nose

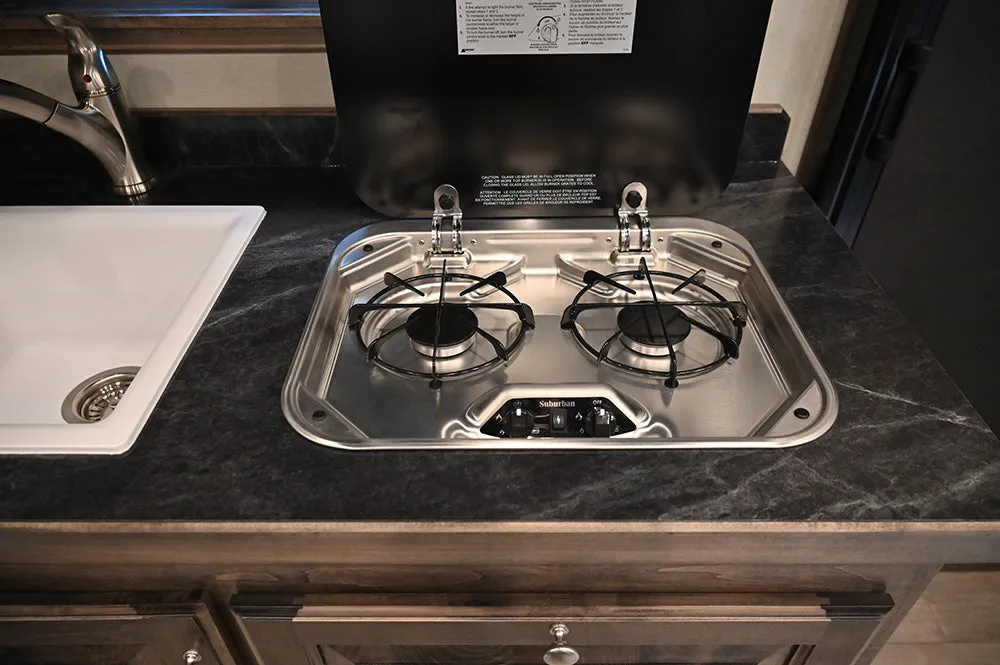

2 burner Suburban Cooktop
15,000BTU air conditioner (ducted)
20,000BTU Ducted LP Furnace

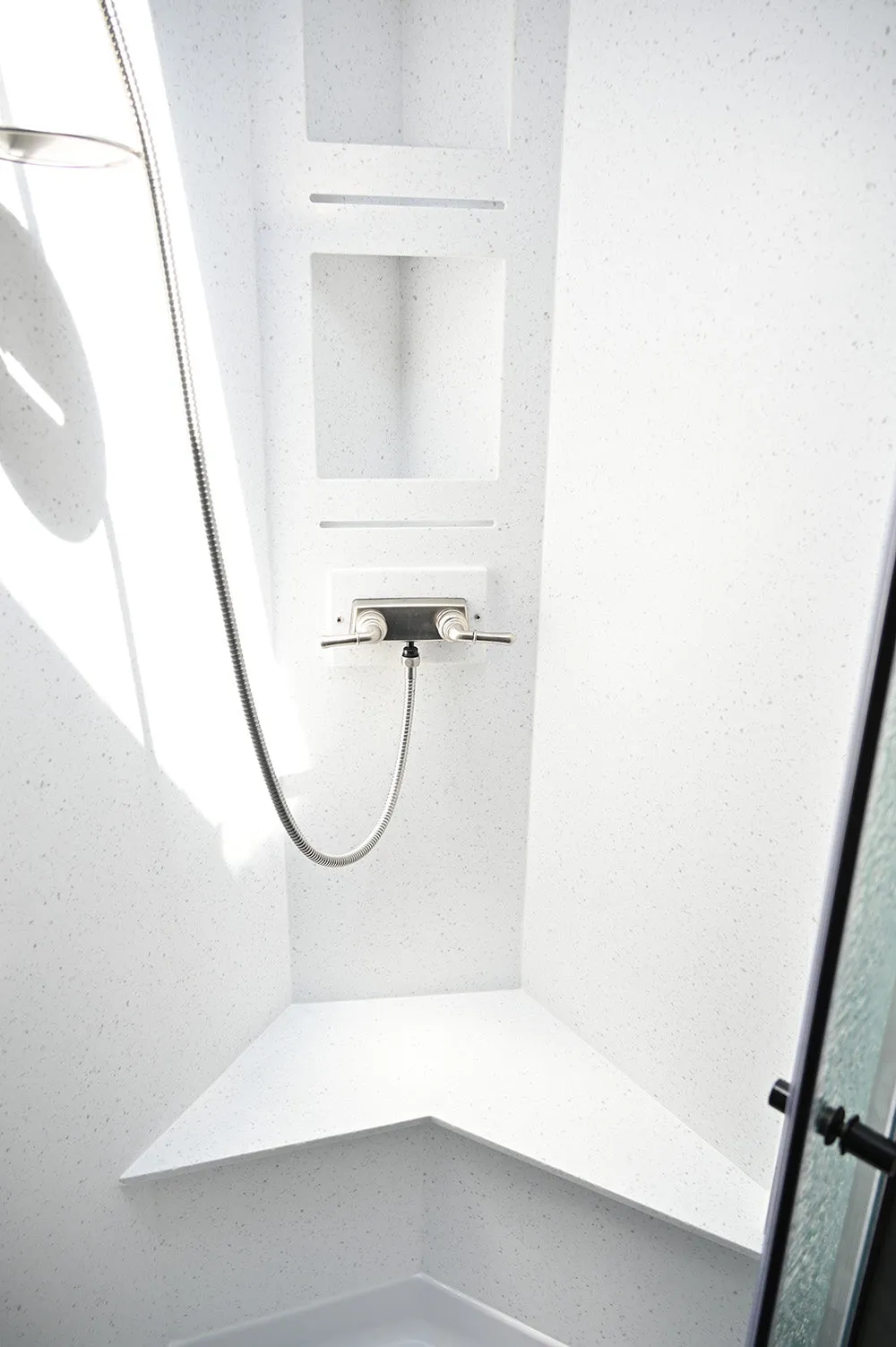

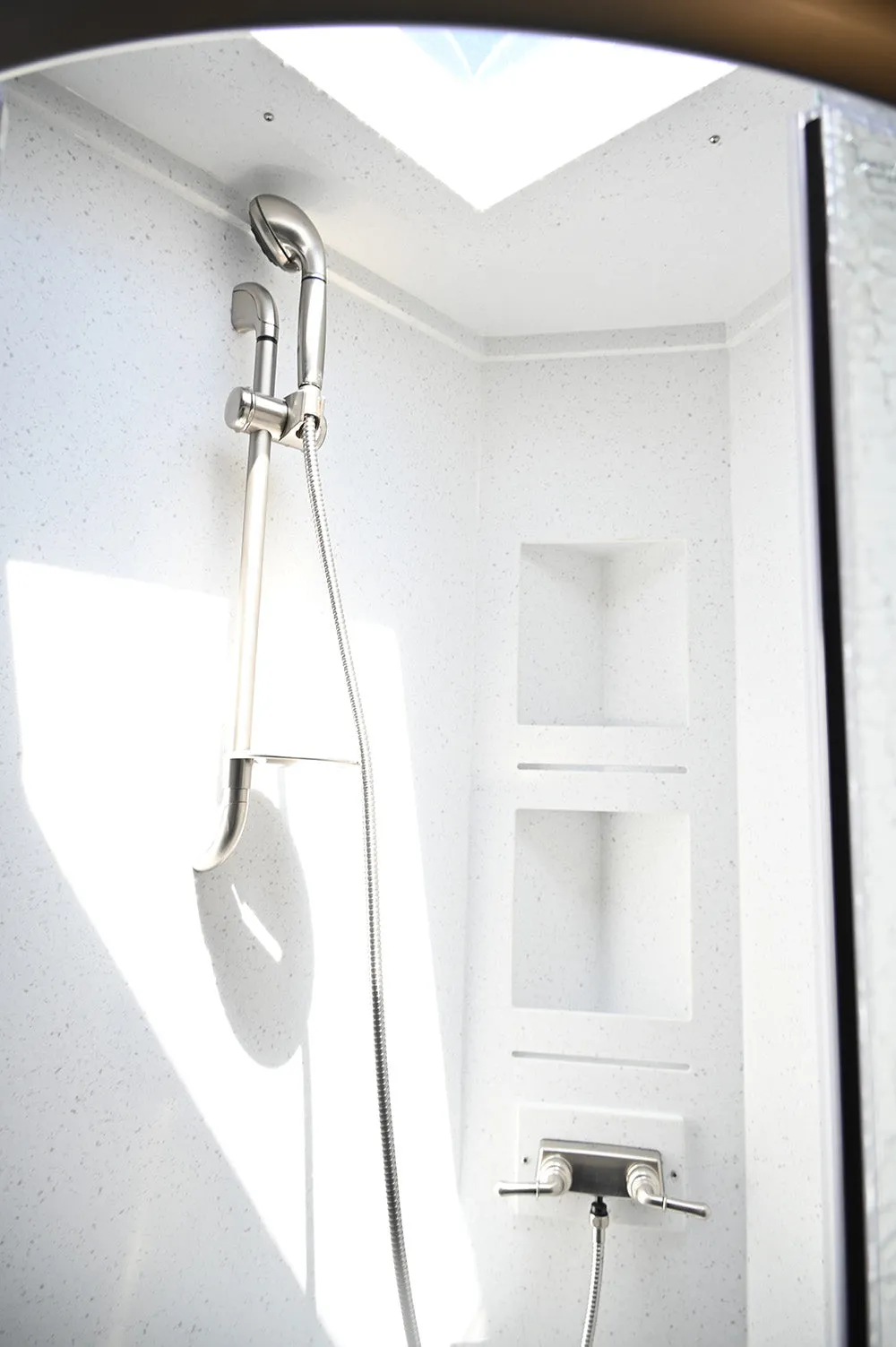

Radial Shower
Shower and toilet in separate room

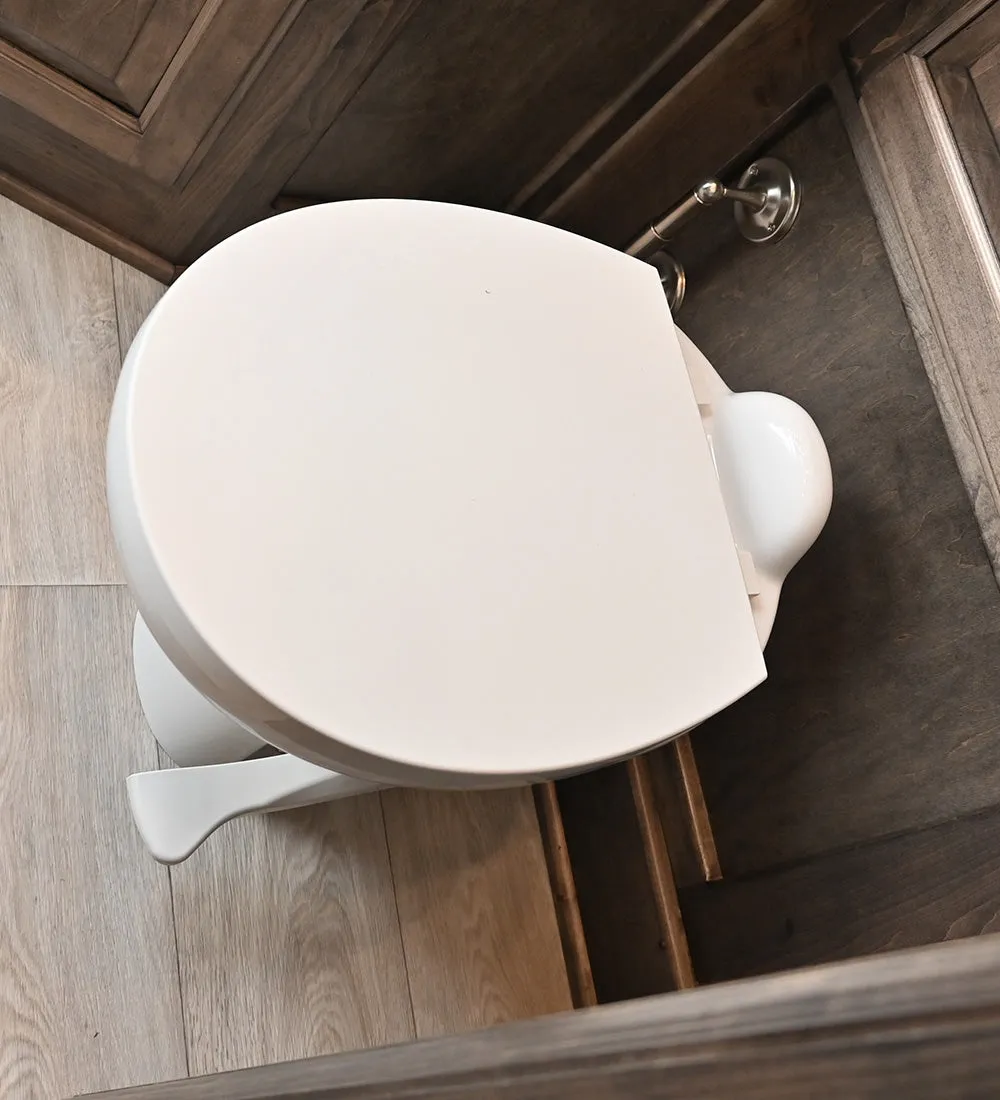

Porcelain toilet
Pop up vent in ceiling

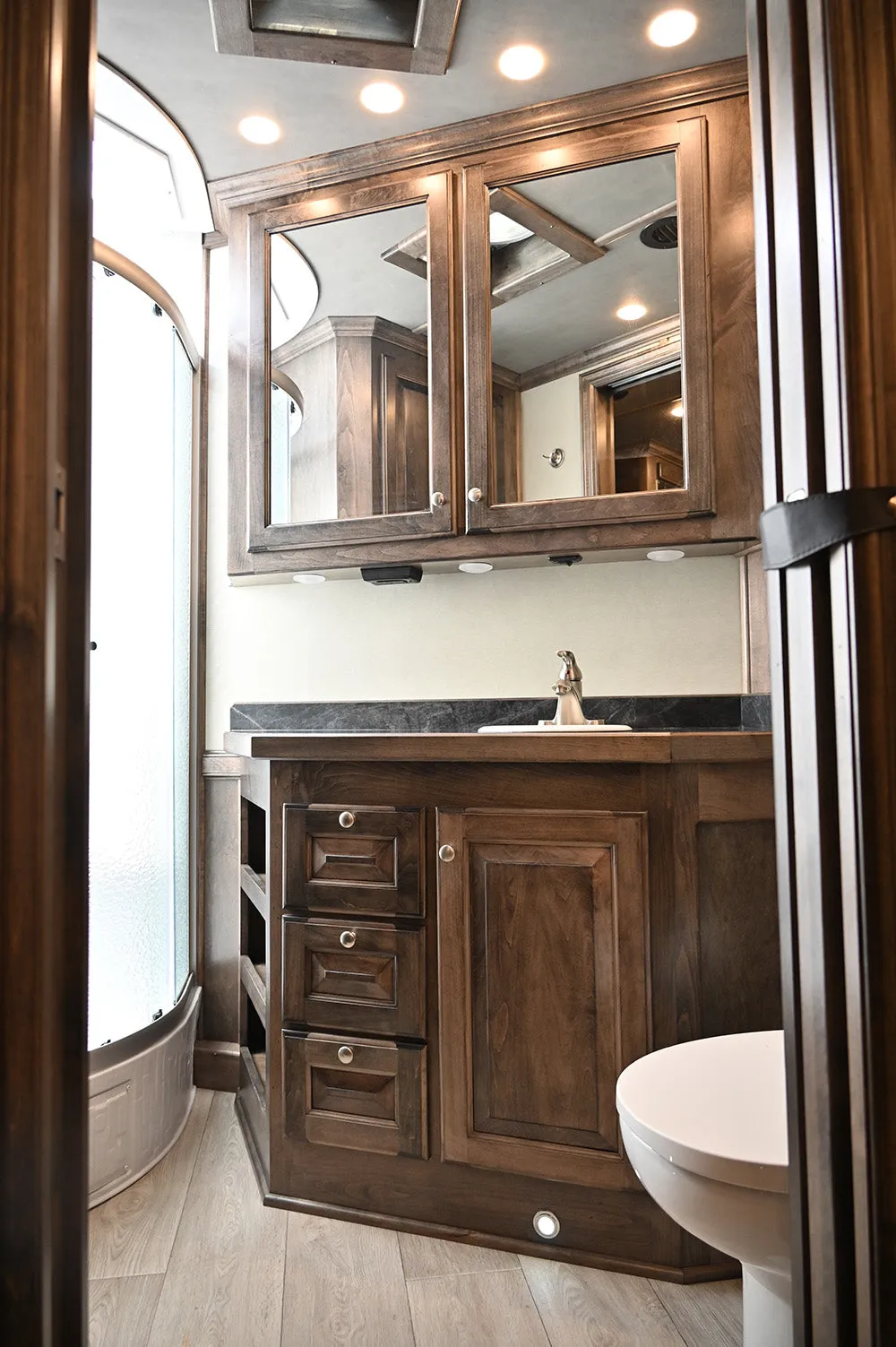

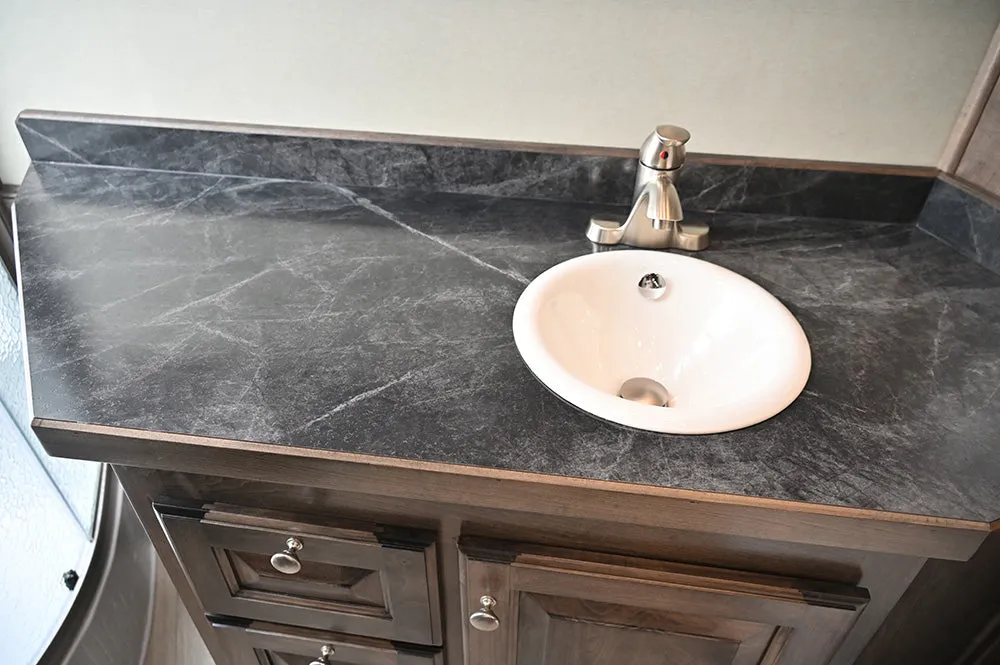

Porcelain Circular sink and vanity mirror in bathroom
6 gallon hot water heater

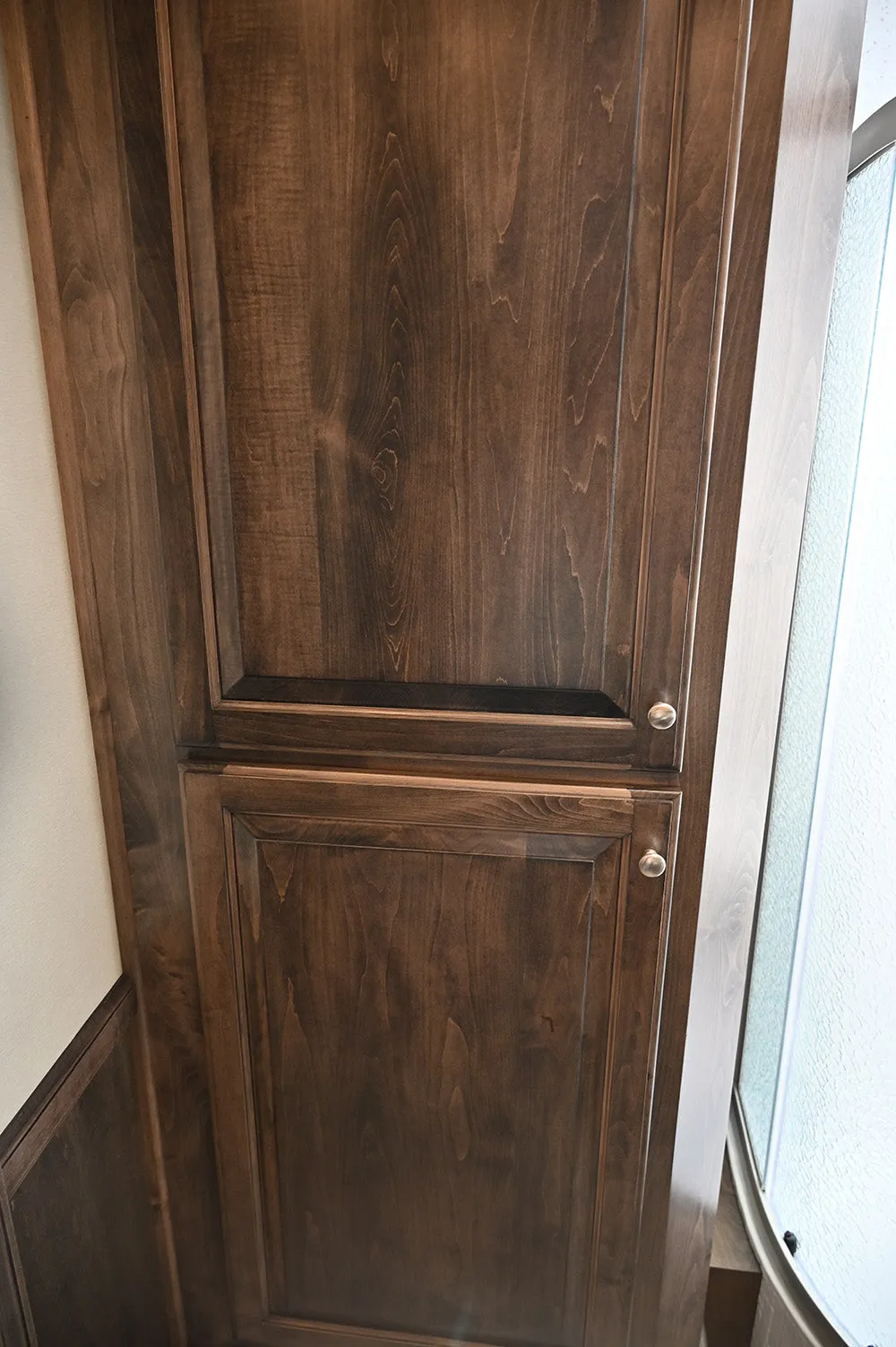

Larger Double Hang up Closet in Bathroom
Cabinets on Street side Wall and in Nose of trailer
Fresh water tank (approximately 40 gallons)
Storage area under counter in bathroom and under TV
Black and gray tanks
Safety systems: smoke detector, LP detector, and fire extinguisher
4000 watt Onan generator (gasoline) located on Landing behind Haypod with. Remote start in LQ
